IXTX90N25L2 Datasheet (IXYS)

IXTX90N25L2, Power MOSFET

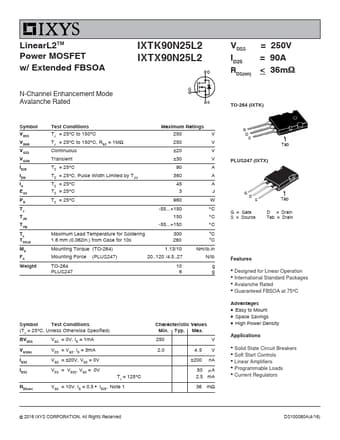

LinearL2TM Power MOSFET w/ Extended FBSOA N-Channel Enhancement Mode Avalanche Rated IXTK90N25L2 IXTX90N25L2 VDSS ID25 RDS(on) = 250V = 90A < 36m TO-264 (IXTK) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS PD TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 250 V 250 V 20 V 30 V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C TC = 25C 90 360 45 3 960 -55+150 150 -55+150 A

IXTX90N25L2 Features

* Designed for Linear Operation

* International Standard Packages

* Avalanche Rated

* Guaranteed FBSOA at 75C Advantages

* Easy to Mount

* Space Savings

* High Power Density Applications

* Solid State Circuit Breakers

* Soft Start Controls

* Linear Amplifiers
