IXTH64N10L2 - Power MOSFET

Download the IXTH64N10L2 datasheet PDF (IXTA64N10L2 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for power mosfet.

Features

  • Designed for Linear Operation.
  • International Standard Packages.
  • Avalanche Rated.
  • Guaranteed FBSOA at 75C Advantages.
  • Easy to Mount.
  • Space Savings.
  • High Power Density.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IXTA64N10L2-IXYS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text

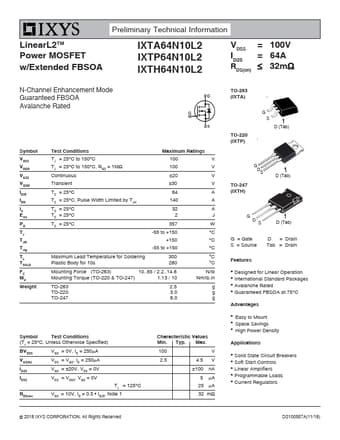

Preliminary Technical Information LinearL2TM Power MOSFET w/Extended FBSOA IXTA64N10L2 IXTP64N10L2 IXTH64N10L2 VDSS = 100V ID25 = 64A  RDS(on) 32m N-Channel Enhancement Mode Guaranteed FBSOA Avalanche Rated Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS PD TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 100 V 100 V 20 V 30 V TC = 25C 64 A TC = 25C, Pulse Width Limited by TJM 140 A TC = 25C TC = 25C 32 A 2 J TC = 25C 357 W -55 to +150 C +150 C -55 to +150 C Maximum Lead Temperature for Soldering 300 °C Plastic Body for 10s 260 °C Mounting Force (TO-263) 10..65 / 2.2..14.6 Mounting Torque (TO-220 & TO-247) 1.13 / 10 N/lb Nm/lb.
