IXTA140N055T2 - Power MOSFET

Features

  • International Standard Packages.
  • Avalanche Rated.
  • Low Package Inductance.
  • Fast Intrinsic Rectifier 175°C Operating Temperature.
  • High Current Handling Capability.
  • ROHS Compliant.
  • High Performance Trench Technology for extremely low RDS(on) Advantages.
  • High Power Density.
  • Easy to Mount.
  • Space Savings.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IXTA140N055T2 N-Channel MOSFET INCHANGE
IXTA140N12T2 N-Channel MOSFET INCHANGE
IXTA14N60P N-Channel MOSFET INCHANGE
IXTA100N04T2 N-Channel MOSFET INCHANGE
IXTA102N15T N-Channel MOSFET INCHANGE

Other Datasheets by IXYS (Littelfuse)

Part Number Description
IXTA140N12T2 Power MOSFET
IXTA140P05T Power MOSFET
IXTA14N60P PolarHV Power MOSFET
IXTA100N04T2 Power MOSFET
IXTA100N15X4 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

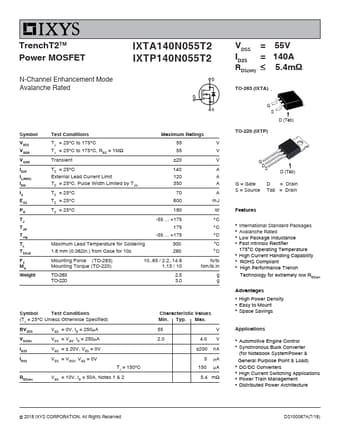

TrenchT2TM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTA140N055T2 IXTP140N055T2 Symbol VDSS VDGR VGSM ID25 IL(RMS) IDM IA EAS PD TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions Maximum Ratings TJ = 25C to 175C TJ = 25C to 175C, RGS = 1M Transient 55 V 55 V 20 V TC = 25C External Lead Current Limit TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C TC = 25C 140 120 350 70 600 180 -55 ... +175 175 -55 ... +175 A A A A mJ W  C  C  C Maximum Lead Temperature for Soldering 300 °C 1.6 mm (0.062in.) from Case for 10s 260 °C Mounting Force (TO-263) Mounting Torque (TO-220) 10..65 / 2.2..14.6 1.13 / 10 N/lb Nm/lb.in TO-263 TO-220 2.5 g 3.
