IXGR50N90B2D1 - IGBT

IXYS

📥 Download Datasheet

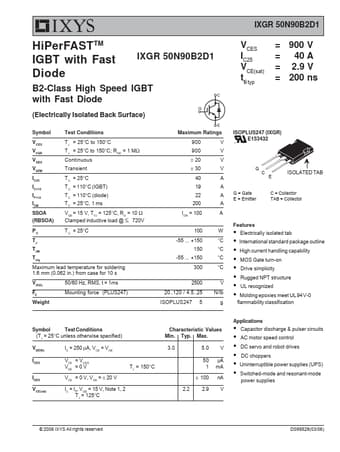

IXGR50N90B2D1 Datasheet Preview — Preview of IXGR50N90B2D1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IXGR50N90B2D1
Manufacturer	IXYS
File Size	211.36 KB
Description	IGBT
Datasheet	IXGR50N90B2D1-IXYS.pdf

IXGR50N90B2D1 Product details

Features

Electrically isolated tab International standard package outline High current handling capability MOS Gate turn-on Drive simplicity Rugged NPT structure UL recognized Molding epoxies meet UL 94V-0 flammability classification Symbol Test Conditions (TJ = 25°C unless otherwise specified) V GE(th) IC = 250 μA, VCE = VGE I CES IGES V CE(sat) VCE = VCES VGE = 0 V TJ = 150°C VCE = 0 V, VGE = ± 20 V IC = ITT,JV=GE1=251°5CV, Note 1, 2 Characteristic Values Min. Typ. Max. 3.0 5.0 V 50 μA 1 mA.
