IXFX420N10T - Power MOSFET

Download the IXFX420N10T datasheet PDF. This datasheet also covers the IXFK420N10T variant, as both devices belong to the same power mosfet family and are provided as variant models within a single manufacturer datasheet.

Features

  • z International Standard Packages z High Current Handling Capability z Fast Intrinsic Diode z Avalanche Rated z Low RDS(on) Advantages z Easy to Mount z Space Savings z High Power Density.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IXFK420N10T-IXYS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IXFX420N10T N-Channel MOSFET INCHANGE
IXFX40N90P Power MOSFET IXYS Corporation
IXFX44N50Q Power MOSFET ETC
IXFX44N60 Power MOSFET IXYS Corporation
IXFX48N60P Power MOSFET IXYS Corporation

Other Datasheets by IXYS (Littelfuse)

Part Number Description
IXFX44N50F Power MOSFET
IXFX44N55Q Power MOSFET
IXFX44N80Q3 N-Channel Power MOSFET
IXFX48N55 Power MOSFET
IXFX48N60Q3 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

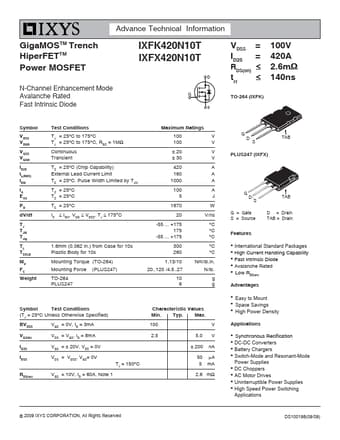

Advance Technical Information GigaMOSTM Trench HiperFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode IXFK420N10T IXFX420N10T VDSS = ID25 = RDS(on) ≤ trr ≤ 100V 420A 2.6mΩ 140ns TO-264 (IXFK) Symbol VDSS VDGR VGSS VGSM ID25 IL(RMS) IDM IA EAS PD dV/dt TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Continuous Transient TC = 25°C (Chip Capability) External Lead Current Limit TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 175°C 1.6mm (0.062 in.
