IXDN614, IXDD614 - 14-Ampere Low-Side Ultrafast MOSFET

IXDN614 Description

INTEGRATED CIRCUITS DIVISION .
The IXDD614 / IXDI614 / IXDN614 high-speed gate drivers are especially well suited for driving the latest IXYS MOSFETs and IGBTs.

IXDN614 Features

* 14A Peak Source/Sink Drive Current
* Wide Operating Voltage Range: 4.5V to 35V
* -40°C to +125°C Extended Operating Temperature Range
* Logic Input Withstands Negative Swing of up to 5V
* Low Propagation Delay Time
* Low, 10A Supply Current

IXDN614 Applications

* Efficient Power MOSFET and IGBT Switching
* Switch Mode Power Supplies
* Motor Controls
* DC to DC Converters
* Class-D Switching Amplifiers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IXDN614, IXDD614. Please refer to the document for exact specifications by model.

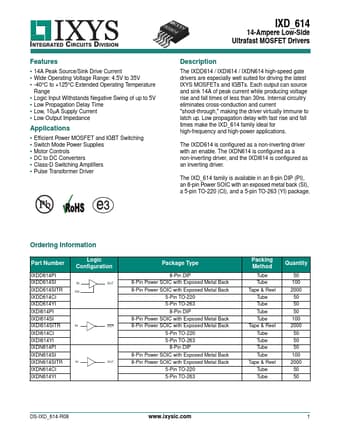

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXDN614, IXDD614
Manufacturer
IXYS
File Size
272.09 KB
Datasheet
IXDD614-IXYS.pdf
Description
14-Ampere Low-Side Ultrafast MOSFET
Note
This datasheet PDF includes multiple part numbers: IXDN614, IXDD614.
Please refer to the document for exact specifications by model.
