IXD5124, IXD5121 - Voltage Detector

Name: IXD5124
SKU: IXD5124-1511764

IXYS

📥 Download Datasheet

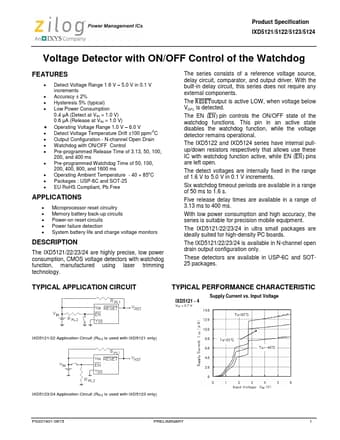

IXD5124 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXD5124, IXD5121. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IXD5124, IXD5121
Manufacturer	IXYS
File Size	1.47 MB
Description	Voltage Detector
Datasheet	IXD5121-IXYS.pdf
Note	This datasheet PDF includes multiple part numbers: IXD5124, IXD5121. Please refer to the document for exact specifications by model.

IXD5124 Product details

Description

The IXD5121/22/23/24 are highly precise, low power consumption, CMOS voltage detectors with watchdog function, manufactured using laser trimming technology.

Features

Detect Voltage Range 1.6 V.
5.0 V in 0.1 V increments.
Accuracy ± 2%.
Hysteresis 5% (typical).
Low Power Consumption 0.4 μA (Detect at VIN = 1.0 V) 0.6 µA (Release at VIN = 1.0 V).
Operating Voltage Range 1.0 V.
6.0 V.
Detect Voltage Temperature Drift ±100 ppm/0C.
Output Configuration - N-channel Open Drain.
Watchdog with ON/OFF Control.
Pre-programmed Release Time of 3.13, 50, 100, 200, and 400 ms.
Pre-programmed Watchdog Time.
