IXCP01N90E - Gate Controlled Current Limiter

Download the IXCP01N90E datasheet PDF (IXCY01N90E included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for gate controlled current limiter.

Features

  • High Output Resistance in Saturated Mode of Operation.
  • Rugged.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IXCY01N90E-IXYS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • IXCP10M35S - (IXCx10Mx5S) Switchable Current Regulators (IXYS Corporation)
  • IXCP10M45S - Switchable Current Regulators (IXYS Corporation)
  • IXCP10M90S - Switchable Current Regulators (IXYS Corporation)
  • IXC - High Voltage Current Regulators (IXYS Corporation)
  • IXCY10M35S - (IXCx10Mx5S) Switchable Current Regulators (IXYS Corporation)
  • IXCY10M45S - Switchable Current Regulators (IXYS Corporation)
  • IXCY10M90S - Switchable Current Regulators (IXYS Corporation)
Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text

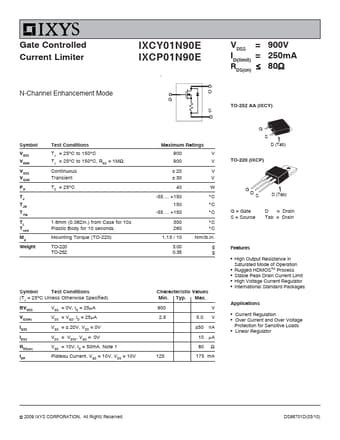

Gate Controlled Current Limiter IXCY01N90E IXCP01N90E VDSS = I =D(limit) RDS(on) ≤ 900V 250mA 80Ω N-Channel Enhancement Mode Symbol VDSS VDGR VGSS VGSM PD TJ TJM Tstg TL Tsold Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C 1.6mm (0.062in.) from Case for 10s Plastic Body for 10 seconds Mounting Torque (TO-220) TO-220 TO-252 Symbol Test Conditions (TJ = 25°C Unless Otherwise Specified) BVDSS VGS = 0V, ID = 25μA VGS(th) VDS = VGS, ID = 25μA IGSS VGS = ± 20V, VDS = 0V IDSS VDS = VDSS, VGS = 0V RDS(on) VGS = 10V, ID = 50mA, Note 1 IDP Plateau Current, VGS = 10V, VDS = 10V D G S Maximum Ratings 900 900 V V ± 20 V ± 30 V 40 W -55 ... +150 150 -55 ... +150 °C °C °C 300 260 1.13 / 10 °C °C Nm/lb.in. 3.00 g 0.
