DSEP2x101-04A High Performance Fast Recovery Diode

DSEP2x101-04A Description

HiPerFRED High Performance Fast Recovery Diode Low Loss and Soft Recovery Parallel legs Part number DSEP2x101-04A 2 1 3 4 DSEP2x101-04A VRRM I F.

DSEP2x101-04A Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI

DSEP2x101-04A Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode
* Rectifiers in switch mode power supplies (SMPS)
* Uninterruptible power supplies (UPS) Package: SOT-227B (minibloc)
* Isolation Voltage: 3000 V~

📥 Download Datasheet

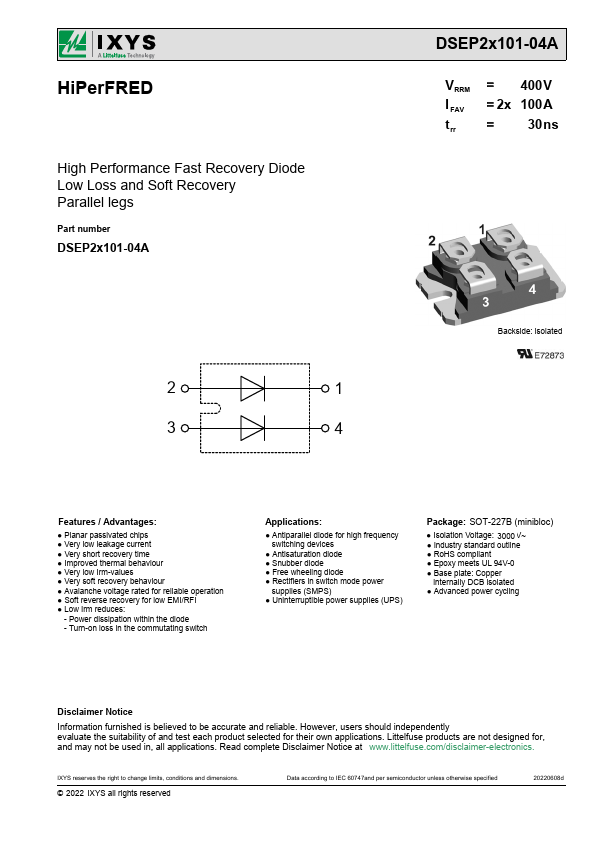

Preview of DSEP2x101-04A PDF

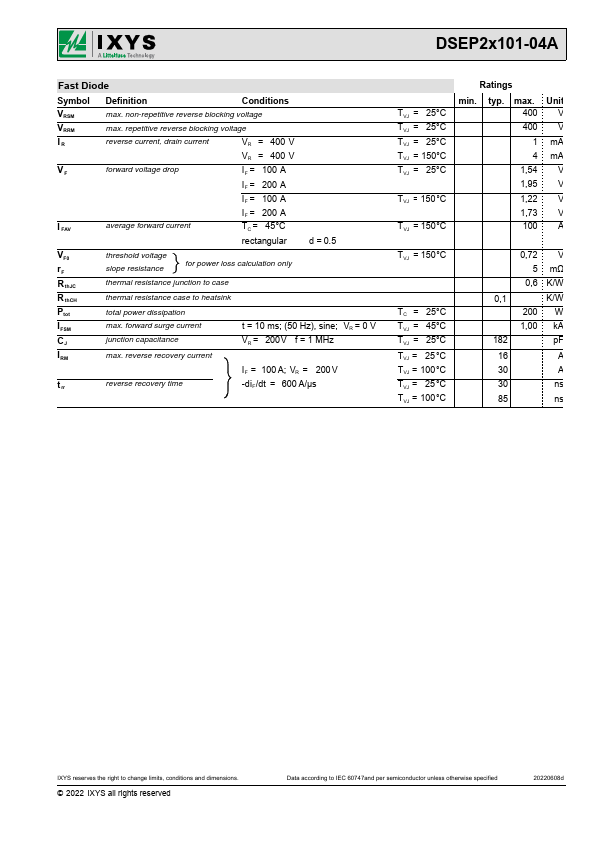

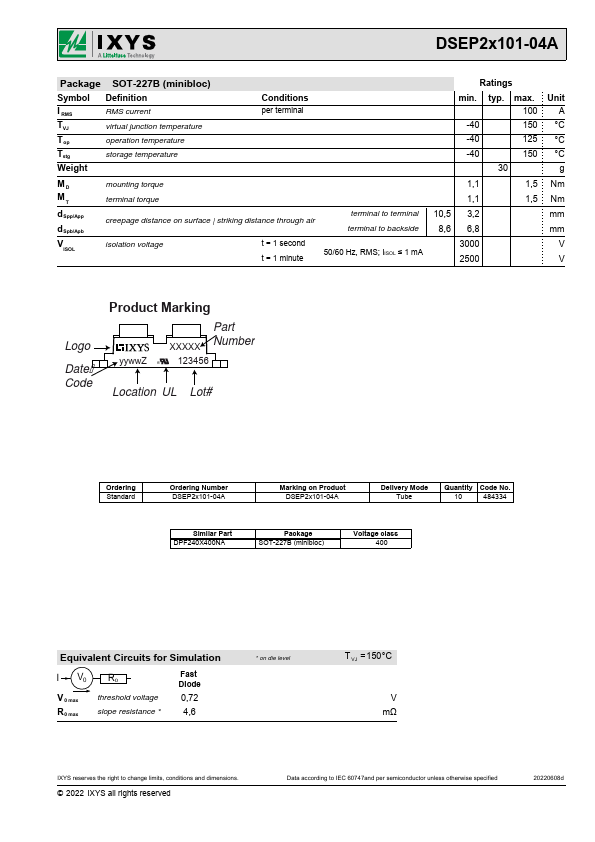

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSEP2x101-04A
Manufacturer
IXYS
File Size
197.13 KB
Datasheet
DSEP2x101-04A-IXYS.pdf
Description
High Performance Fast Recovery Diode
