DSEC30-06A High Performance Fast Recovery Diode

DSEC30-06A Description

HiPerFRED High Performance Fast Recovery Diode Low Loss and Soft Recovery Common Cathode Part number DSEC30-06A 1 2 3 DSEC30-06A VRRM I FAV t rr .

DSEC30-06A Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI

DSEC30-06A Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode
* Rectifiers in switch mode power supplies (SMPS)
* Uninterruptible power supplies (UPS) Package: TO-247
* Industry standard outline
* RoHS complia

📥 Download Datasheet

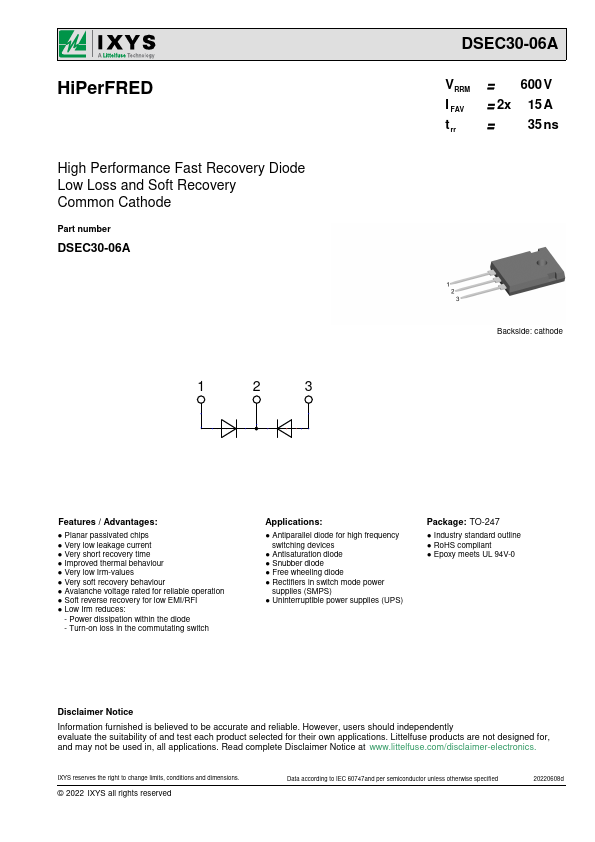

Preview of DSEC30-06A PDF

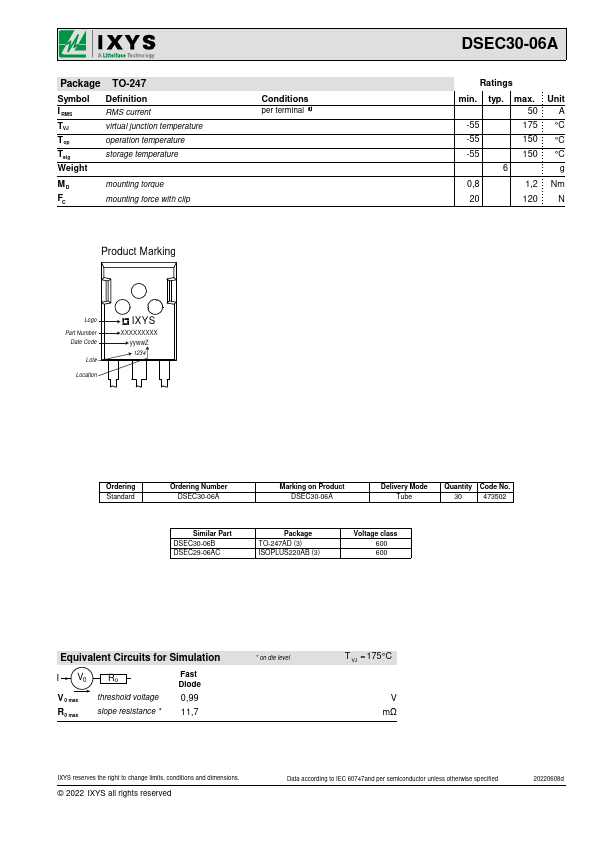

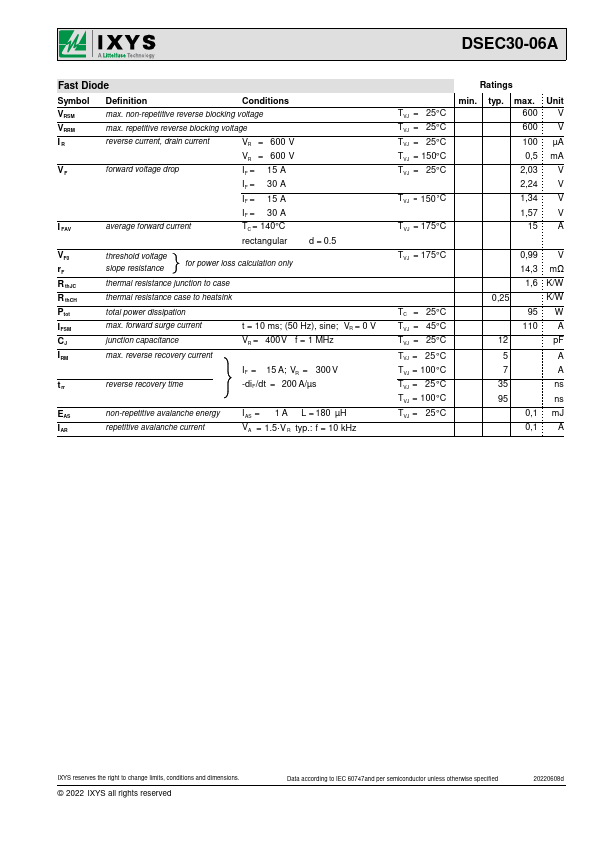

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSEC30-06A
Manufacturer
IXYS
File Size
347.13 KB
Datasheet
DSEC30-06A-IXYS.pdf
Description
High Performance Fast Recovery Diode
