DPG60C300HB

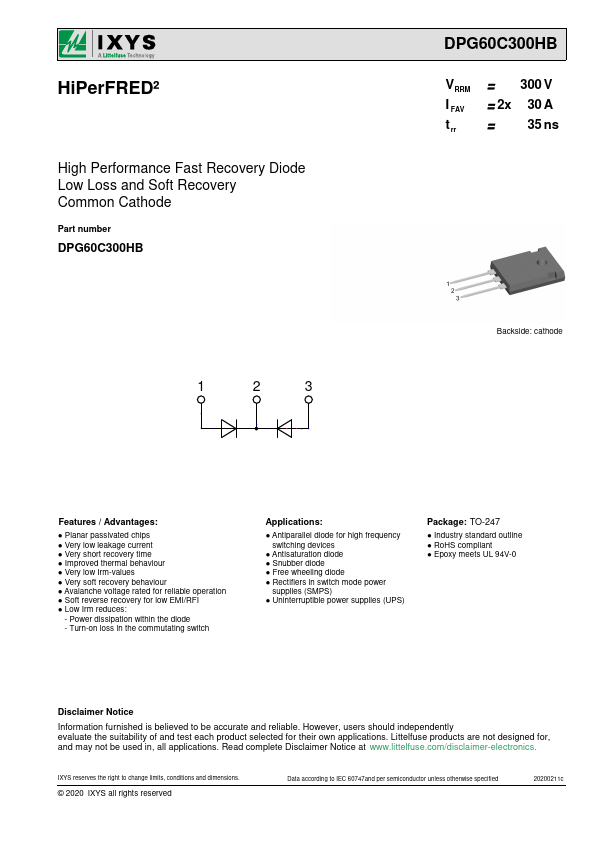

The DPG60C300HB is High Performance Fast Recovery Diode designed by IXYS.

Product Overview

IXYS

Datasheet Details

Part number	DPG60C300HB
Manufacturer	IXYS
File Size	361.23 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPG60C300HB_IXYS.pdf
Additional preview pages of the DPG60C300HB datasheet.

Product details

Description

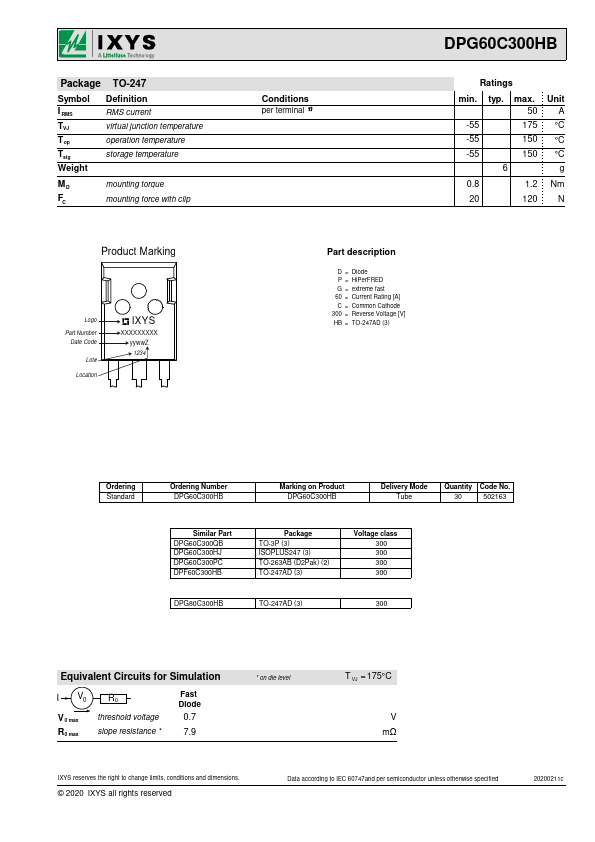

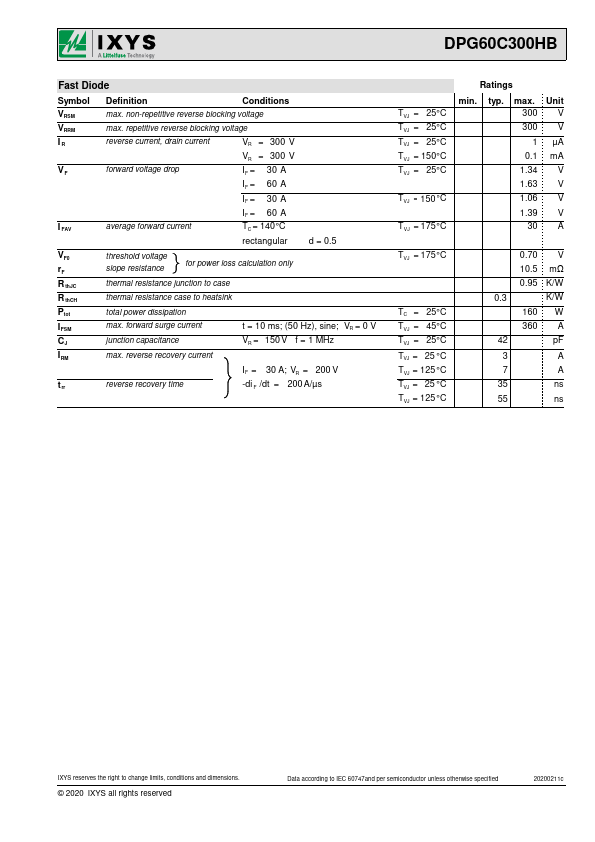

D = Diode P = HiPerFRED G = extreme fast 60 = Current Rating [A] C = Common Cathode 300 = Reverse Voltage [V] HB = TO-247AD (3) Ordering Standard Ordering Number DPG60C300HB Marking on Product DPG60C300HB Delivery Mode Tube Quantity Code No.30 502163 Similar Part DPG60C300QB DPG60C300HJ DPG60C300PC DPF60C300HB DPG80C300HB Package TO-3P (3) ISOPLUS247 (3) TO-263AB (D2Pak) (2) TO-247AD (3) Voltage class 300 300 300 300 TO-247AD (3) 300 Equivalent Circuits for Simulation I V0 R0 V

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
