DPG10I200PA - High Performance Fast Recovery Diode

Product Overview

IXYS

Datasheet Details

Part number	DPG10I200PA
Manufacturer	IXYS
File Size	137.70 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPG10I200PA Datasheet

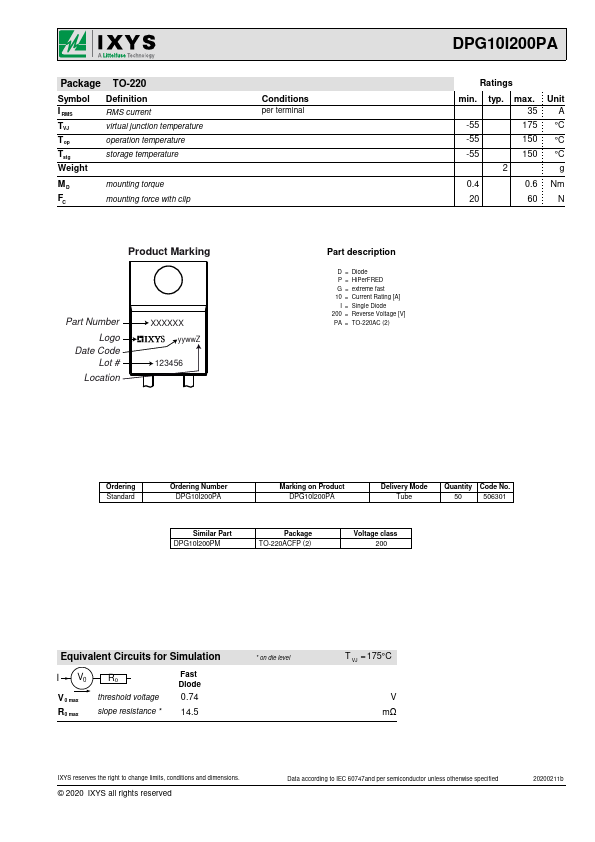

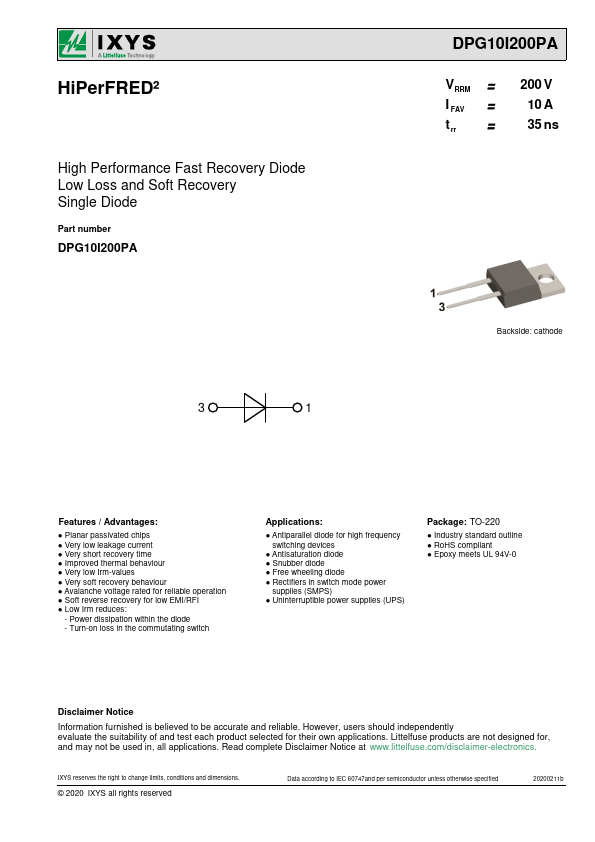

Additional preview pages of the DPG10I200PA datasheet.

Product details

Description

D = Diode P = HiPerFRED G = extreme fast 10 = Current Rating [A] I = Single Diode 200 = Reverse Voltage [V] PA = TO-220AC (2) Ordering Standard Ordering Number DPG10I200PA Marking on Product DPG10I200PA Delivery Mode Tube Quantity Code No.50 506301 Similar Part DPG10I200PM Package TO-220ACFP (2) Voltage class 200 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 0.74 14.5 on die level T VJ = 175°C V mΩ IXYS res

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
