DE375-102N12A - RF Power MOSFET

Features

  • Isolated Substrate.
  • high isolation voltage (>2500V).
  • excellent thermal transfer.
  • Increased temperature and power cycling capability.
  • IXYS advanced low Qg process.
  • Low gate charge and capacitances.
  • easier to drive.
  • faster switching.
  • Low RDS(on).
  • Very low insertion inductance (.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DE375-102N10A RF Power MOSFET IXYS Corporation
DE375-501N21A RF Power MOSFET IXYS Corporation
DE37 DE37 Series power supply line and communication line Mitsubishi
DE37-102M DE37 Series power supply line and communication line Mitsubishi
DE37-301L DE37 Series power supply line and communication line Mitsubishi

Other Datasheets by IXYS (Littelfuse)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

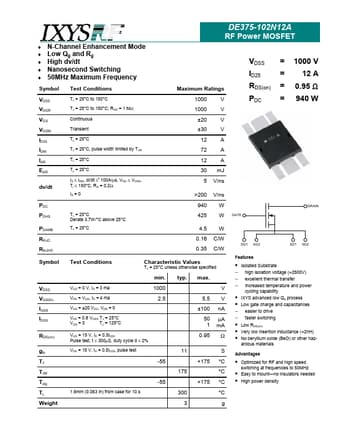

♦ N-Channel Enhancement Mode ♦ Low Qg and Rg ♦ High dv/dt ♦ Nanosecond Switching ♦ 50MHz Maximum Frequency Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR dv/dt Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient Tc = 25°C Tc = 25°C, pulse width limited by TJM Tc = 25°C Tc = 25°C IS ≤ IDM, di/dt ≤ 100A/µs, VDD ≤ VDSS, Tj ≤ 150°C, RG = 0.2Ω IS = 0 DE375-102N12A RF Power MOSFET Maximum Ratings 1000 V 1000 V ±20 V ±30 V 12 A 72 A 12 A 30 mJ 5 V/ns >200 V/ns VDSS = 1000 V ID25 = 12 A RDS(on) = 0.95 Ω PDC = 940 W PDC PDHS PDAMB RthJC RthJHS Symbol VDSS VGS(th) IGSS IDSS RDS(on) gfs TJ TJM Tstg TL Weight Tc = 25°C Derate 3.7W/°C above 25°C Tc = 25°C 940 W 425 W GATE 4.5 W DRAIN 0.16 C/W 0.
