CPC5001 - 1-Channel Each Direction Digital Optical Isolator

IXYS

The CPC5001 by IXYS is a 1-Channel Each Direction Digital Optical Isolator. Below is the official datasheet preview.

📥 Download Datasheet

CPC5001 1-Channel Each Direction Digital Optical Isolator by IXYS - Datasheet Preview — Official preview page of the CPC5001 1-Channel Each Direction Digital Optical Isolator datasheet (IXYS).

Datasheet Details

Part number	CPC5001
Manufacturer	IXYS
File Size	208.36 KB
Description	1-Channel Each Direction Digital Optical Isolator
Datasheet	CPC5001_IXYS.pdf

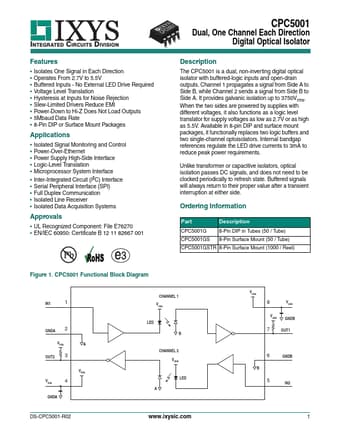

Additional preview pages of the CPC5001 datasheet.

CPC5001 Product details

Description

The CPC5001 is a dual, non-inverting digital optical isolator with buffered-logic

Features

Isolates One Signal in Each Direction.
Operates From 2.7V to 5.5V.
Buffered Inputs - No External LED Drive Required.
Voltage Level Translation.
Hysteresis at Inputs for Noise Rejection.
Slew-Limited Drivers Reduce EMI.
Power-Down to Hi-Z Does Not Load Outputs.
5Mbaud Data Rate.
8-Pin DIP or Surface Mount Packages.
