CPC1779J, CPC1779 Normally Open DC-Only Power Relay

CPC1779J Description

INTEGRATED CIRCUITS DIVISION Characteristics Parameter Blocking Voltage Load Current, TA=25°C: With 5°C/W Heat Sink No Heat Sink On-Resistance (max) .
IXYS Integrated Circuits brings OptoMOS® technology, reliability, and compact size to a new family of high-power Solid State Relays.

CPC1779J Features

* 4.12ADC Load Current with 5°C/W Heat Sink
* Low 0.4 On-Resistance
* 600VP Blocking Voltage
* 2500Vrms Input/Output Isolation
* Low Thermal Impedance: JC = 0.3 °C/W

CPC1779J Applications

* Low Drive Power Requirements
* No EMI/RFI Generation
* Flammability Rating UL 94 V-0 Applications
* Industrial Controls / Motor Control
* Robotics
* Medical Equipment
* Patient/Equipment Isolation
* Instrumentation
* Multiplexer

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CPC1779J, CPC1779. Please refer to the document for exact specifications by model.

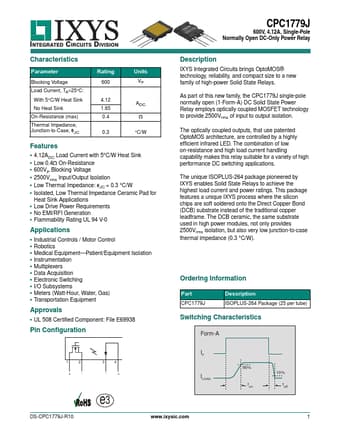

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CPC1779J, CPC1779
Manufacturer
IXYS
File Size
231.11 KB
Datasheet
CPC1779-IXYS.pdf
Description
Normally Open DC-Only Power Relay
Note
This datasheet PDF includes multiple part numbers: CPC1779J, CPC1779.
Please refer to the document for exact specifications by model.
