CMA80PD1600NA Thyristor

CMA80PD1600NA Description

Thyristor Phase leg Part number CMA80PD1600NA 4 3 12 CMA80PD1600NA VRRM I TAV VT = 2x 1600 V = 80 A = 1.29 V Backside: isolated .
C = Thyristor (SCR) M = Thyristor A = (up to 1800V) 80 = Current Rating [A] PD = Phase leg 1600 = Reverse Voltage [V] NA = SOT-227B (minibloc) Orderi.

CMA80PD1600NA Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip

CMA80PD1600NA Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: SOT-227B (minibloc)
* Isolation Voltage: 3000 V~
* Industry standard outline
* RoHS compliant
* Epoxy

📥 Download Datasheet

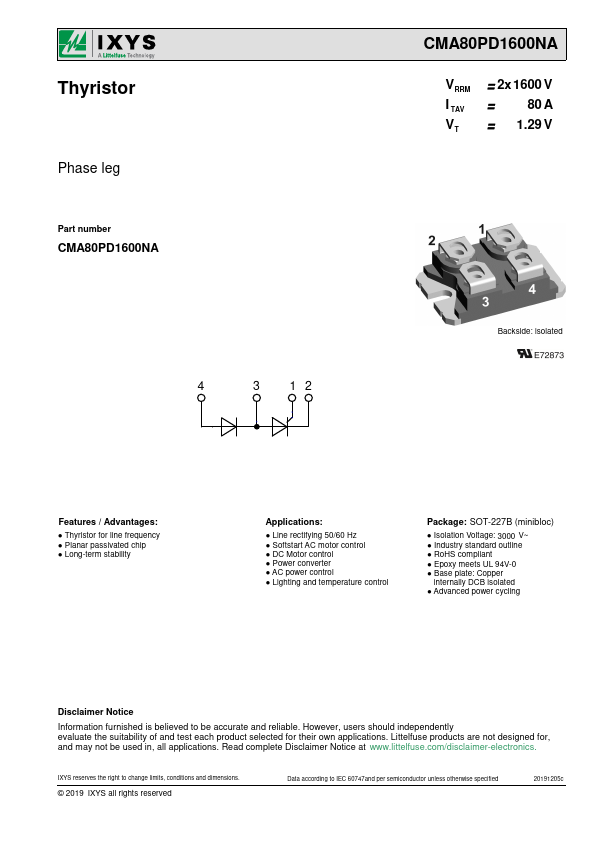

Preview of CMA80PD1600NA PDF

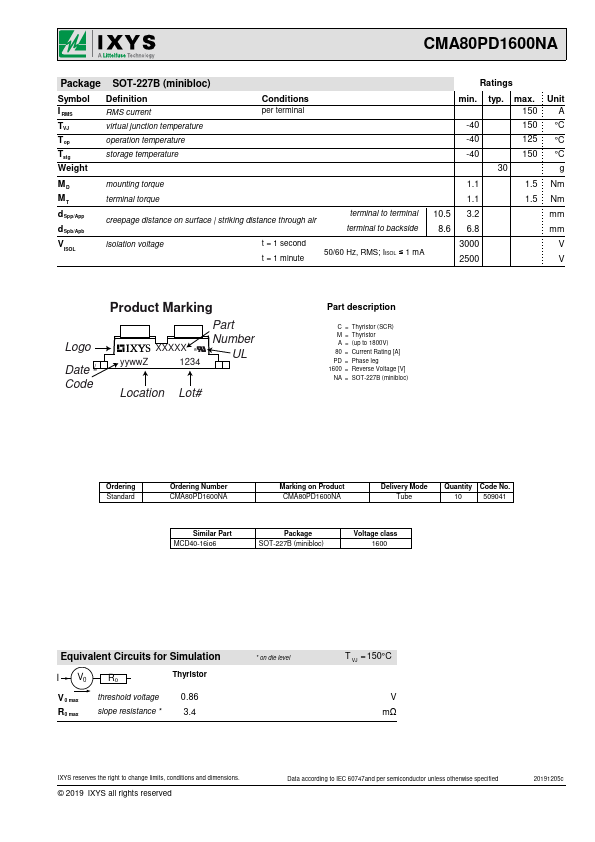

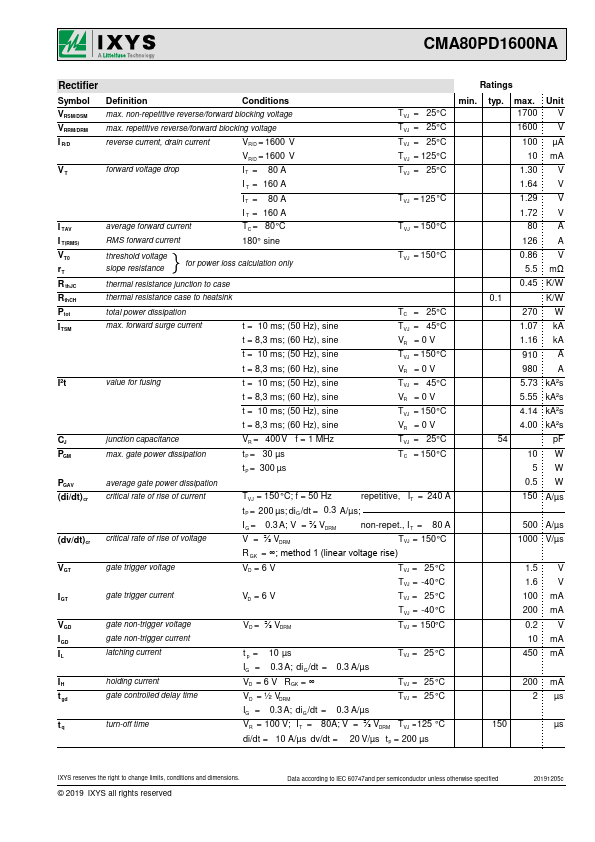

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMA80PD1600NA
Manufacturer
IXYS
File Size
547.05 KB
Datasheet
CMA80PD1600NA-IXYS.pdf
Description
Thyristor
