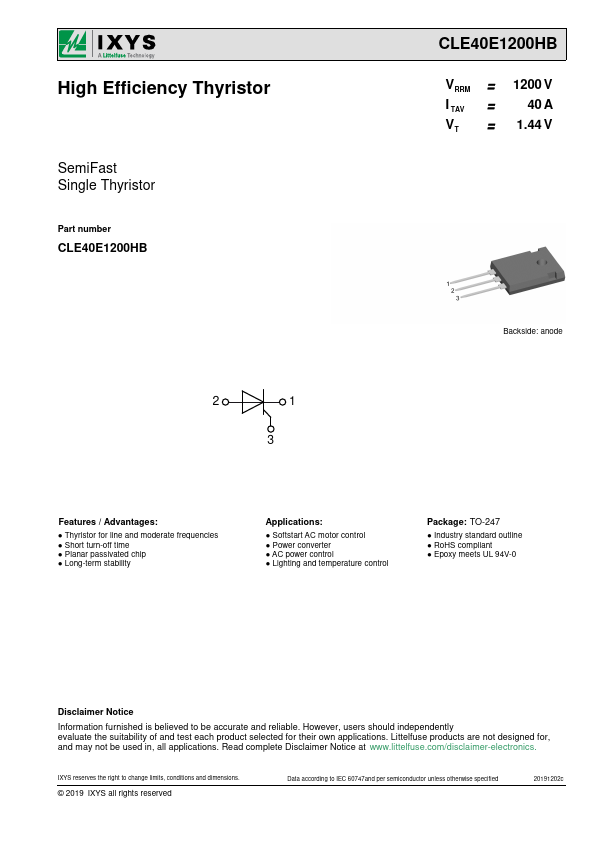

CLE40E1200HB - High Efficiency Thyristor

IXYS

CLE40E1200HB Datasheet Preview — Preview of CLE40E1200HB PDF

Datasheet Details

Part number	CLE40E1200HB
Manufacturer	IXYS
File Size	366.45 KB
Description	High Efficiency Thyristor
Datasheet	CLE40E1200HB-IXYS.pdf

CLE40E1200HB Product details

Description

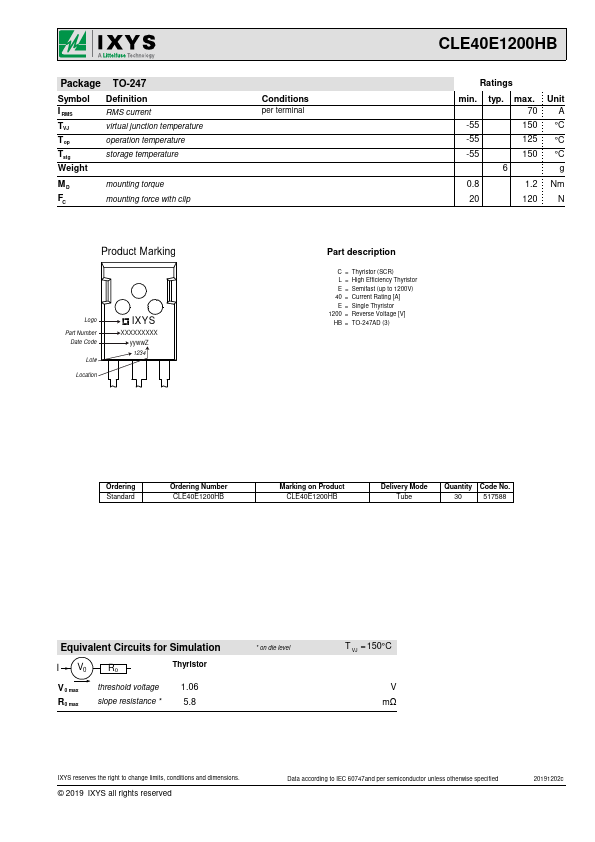

C = Thyristor (SCR) L = High Efficiency Thyristor E = Semifast (up to 1200V) 40 = Current Rating [A] E = Single Thyristor 1200 = Reverse Voltage [V] HB = TO-247AD (3) Ordering Standard Ordering Number CLE40E1200HB Marking on Product CLE40E1200HB Delivery Mode Tube Quantity Code No.30 517588 Equivalent Circuits for Simulation I V0 R0 Thyristor V 0 max R0 max threshold voltage slope resistance 1.06 5.8 on die level T VJ = 150°C V mΩ IXYS reserves the right to change l

Features

/ Advantages:.
Thyristor for line and moderate frequencies.
Short turn-off time.
Planar passivated chip.
Long-term stability.
