VUO62-12NO7 Standard Rectifier Module

IXYS Corporation

Description

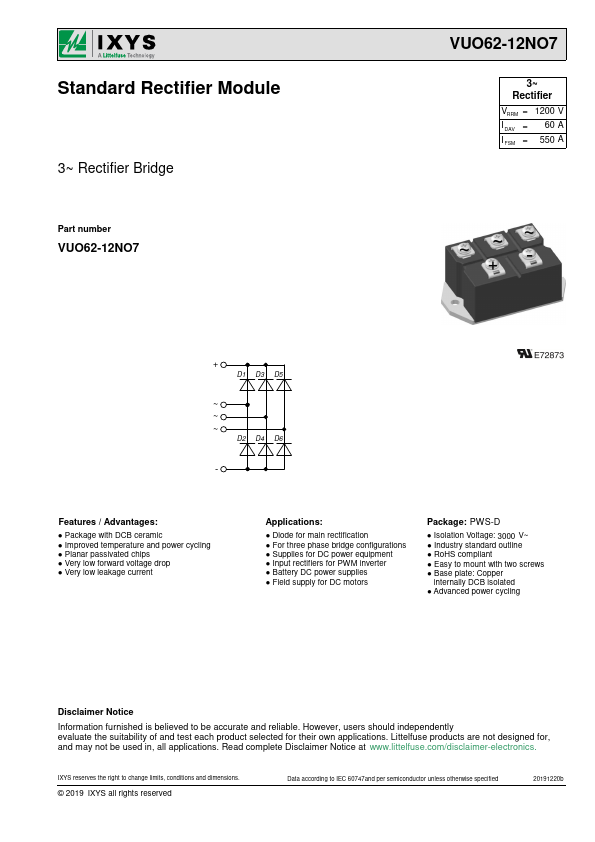

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO62-12NO7 VUO62-12NO7 3~ Rectifier VRRM = I DAV = I FSM = 1200 V 60 A 550 A + D1 D3 D.

📥 Download Datasheet

VUO62-12NO7 Datasheet Preview — Preview of VUO62-12NO7 PDF

Datasheet Specifications

Part number: VUO62-12NO7
Manufacturer: IXYS Corporation
File Size: 239.45 KB
Datasheet: VUO62-12NO7-IXYSCorporation.pdf
Description: Standard Rectifier Module

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: PWS-D
* Isolation Voltage: 3000 V~
* Industry standard outl
