MCC310 Thyristor Modules Thyristor/Diode Modules

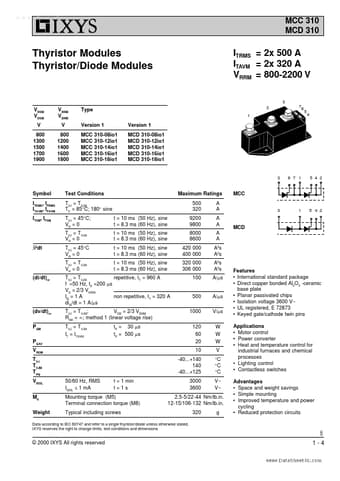

w w w . D a t a S h e e t 4 U . c o m MCC 310 MCD 310 Thyristor Modules Thyristor/Diode Modules ITRMS = 2x 500 A ITAVM = 2x 320 A VRRM = 800-2200 V 3 VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 Type 1 2 76 5 4 Version 1 MCC 310-08io1 MCC 310-12io1 MCC 310-14io1 MCC 310-16io1 MCC 310-18io1 Version 1 MCD 310-08io1 MCD 310-12io1 MCD 310-14io1 MCD 310-16io1 MCD 310-18io1 3 6 7 1 5 4 2 Symbol ITRMS, IFRMS ITAVM, IFAVM ITSM, IFSM Test Conditions TVJ = TVJM .

MCC310 Features

* International standard package Direct copper bonded Al2O3 -ceramic base plate Planar passivated chips Isolation voltage 3600 V~ UL registered, E 72873 Keyed gate/cathode twin pins q q q q q q Applications Motor control Power converter Heat and temperature control for industrial furnaces and chemica
