IXFH340N075T2, Power MOSFET

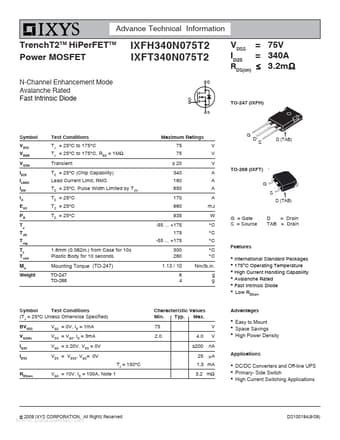

Advance Technical Information TrenchT2TM HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode IXFH340N075T2 IXFT340N075T2 VDSS ID25 RDS(on) = 75V = 340A ≤ 3.2mΩ TO-247 (IXFH) Symbol VDSS VDGR VGSM ID25 ILRMS IDM IA EAS PD TJ TJM Tstg TL Tsold Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Transient TC = 25°C (Chip Capability) Lead Current Limit, RMS TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C Maximum

IXFH340N075T2 Features

* z z International Standard Packages 175°C Operating Temperature z High Current Handling Capability z Avalanche Rated z Fast Intrinsic Diode z Low RDS(on) Advantages z Symbol Test Conditions (TJ = 25°C Unless Otherwise Specified) BVDSS VGS(th) IGSS IDSS RDS(on) VGS = 0V, ID = 1mA VDS = VGS, ID = 3m
