DSSK60-013A Datasheet (IXYS Corporation) - POWER SCHOTTKY RECTIFIER

DSSK60-013A, POWER SCHOTTKY RECTIFIER

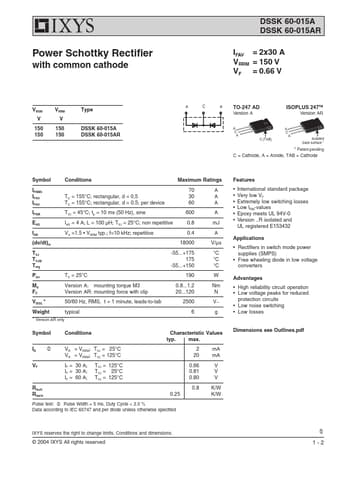

Power Schottky Rectifier with common cathode DSSK 60-015A DSSK 60-015AR IFAV = 2x30 A VRRM = 150 V VF = 0.66 V VRSM V 150 150 VRRM V 150 150 Type DSSK 60-015A DSSK 60-015AR A C A TO-247 AD Version A ISOPLUS 247TM Version AR A A C C A A C (TAB) Isolated back surface Patent pending C = Cathode, A = Anode, TAB = Cathode Symbol Conditions Maximum Ratings IFRMS 70 IFAV TC = 155°C; rectangular, d = 0.5 30 IFAV TC = 155°C; rectangular, d = 0.5; per device 60

DSSK60-013A Features

* International standard package

* Very low VF

* Extremely low switching losses

* Low IRM-values

* Epoxy meets UL 94V-0

* Version ..R isolated and UL registered E153432 Applications

* Rectifiers in switch mode power supplies (SMPS)

* Fr
