TST04RA00 - Cannon Trident Connector System

Download the TST04RA00 datasheet PDF. This datasheet also covers the TST02PA00 variant, as both devices belong to the same cannon trident connector system family and are provided as variant models within a single manufacturer datasheet.

Description

Insulator Material Black Nylon, UL 94V-0 Finish None Dimensions shown in mm (inch) Specifications and dimensions subject to change www.ittcannon.com 6 Free Datasheet http://www.datasheet4u.com/ Cannon Trident Connector System Snap Together-Rectangular 2 Way Plug Receptacle 3 Way Plug Receptac

Features

  • Easy cost effective installation.
  • Integrally molded latches and connector polarization.
  • Recognized under the component program of UL Inc. and CSA.
  • Inter-connector discrimination facilities available.
  • Accepts formed (stamped) or machined contacts, see page 47. Performance Specifications Operating Voltage Contact Current Rating Temperature Range 250 V ac rms Up to 13 A (For derating curve, see page 44).
  • 55°C to 105°C (.
  • 67°F to 221°.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TST02PA00_ITT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TST04RA00
Manufacturer ITT
File Size 524.19 KB
Description Cannon Trident Connector System
Datasheet download datasheet TST04RA00 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TST0010R2A4111XXXX01 Touch Panel RAYSTAR
TST020CY-T01 TFT-LCD Module TSD
TST020QVTI-01 LCD TSD
TST070WVBH-03C LCD TSD
TST101H-T01 LCD Display Module Team Source Display

Other Datasheets by ITT

Part Number Description
TST04AH00 Cannon Trident Connector System
TST04AS00 Cannon Trident Connector System
TST04PA00 Cannon Trident Connector System
TST02AH00 Cannon Trident Connector System
TST02AH00 Cannon Trident Connector System

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

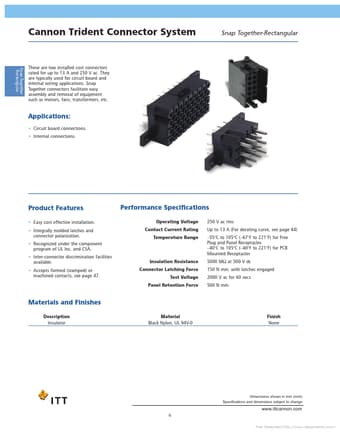

Cannon Trident Connector System Snap Together-Rectangular These are low installed cost connectors rated for up to 13 A and 250 V ac. They are typically used for circuit board and internal wiring applications. Snap Together connectors facilitate easy assembly and removal of equipment such as motors, fans, transformers, etc. Snap Together Rectangular Applications: • Circuit board connections. • Internal connections. Product Features • Easy cost effective installation. • Integrally molded latches and connector polarization. • Recognized under the component program of UL Inc. and CSA. • Inter-connector discrimination facilities available. • Accepts formed (stamped) or machined contacts, see page 47.
