MS3475A10-xxx - Series 2 Connectors PV

ITT Industries

📥 Download Datasheet

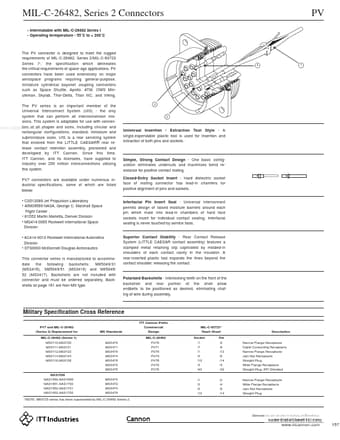

MS3475A10-xxx Datasheet Preview — Preview of MS3475A10-xxx PDF

Datasheet Details

Part number	MS3475A10-xxx
Manufacturer	ITT Industries
File Size	559.68 KB
Description	Series 2 Connectors PV
Datasheet	MS3475A10-xxx_ITTIndustries.pdf

MS3475A10-xxx Product details

Description

Narrow Flange Receptacle Cable Connecting Receptacle Narrow Flange Receptacle Jam Nut Receptacle Straight Plug Wide Flange Receptacle Straight Plug, RFI Shielded Narrow Flange Receptacle Wide Flange Receptacle Jam Nut Receptacle Straight Plug NAS1599 NAS1650,NAS1699 NAS1651,NAS1700 NAS1652,NAS1701 NAS1653,NAS1702 NOTE: M83723 series has been superseded by MIL-C-26482 Series 2.

Features

a stamped metal retaining clip captivated by molded-in shoulders of each contact cavity in the insulator. A rear-inserted plastic tool expands the tines beyond the contact shoulder, releasing the contact. Polarized Backshells - Interlocking teeth on the front of the backshell and rear portion of the shell allow endbells to be positioned as desired, eliminating chafing of wire during assembly. Military Specification Cross Reference PV7 and MIL-C-26482 (Series 2) Replacement for MIL-C-26482 (Ser.
