DLM - Zero Insertion Force

Product Overview

ITT Industries

Datasheet Details

Part number	DLM
Manufacturer	ITT Industries
File Size	113.13 KB
Description	Zero Insertion Force
Datasheet	DLM Datasheet

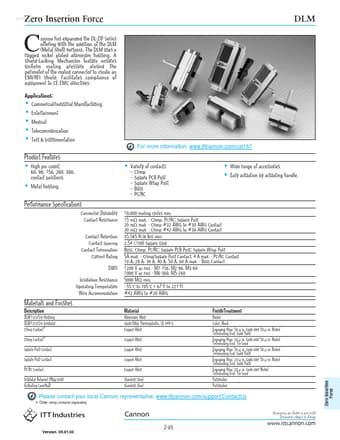

Additional preview pages of the DLM datasheet.

Product details

Description

DLM1/2/3/5/6 Housing DLM1/2/3/5/6 Insulator Crimp Contact✧ Crimp Contact✧ Square Post Contact Square Post Contact PC/RC Contact Insulator Retainer (Plug Only) Actuating Camshaft Material Aluminum Alloy Glass-filled Thermoplastic, UL 94V-0 Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Stainless Steel Stainless Steel Finish/Treatment Nickel Color: Black Engaging Area: 50 µ in.Gold over 50 µ in.Nickel Terminating End: Gold Flash Engaging Area: 20 µ in.Gold over 50 µ in.Nick

Features

High pin count:.
Metal housing. 60, 96, 156, 260, 360, contact positions.
Variety of contacts:.
Crimp.
Square PCB Post.
Square Wrap Post.
Buss.
PC/RC.
Wide range of accessories.
Easy actuation by actuating handle. Performance Specifications Connector Durability Contact Resistance 10,000 mating cycles min. 15 mΩ max. - Crimp; PC/RC; Square Post 20 mΩ max. - Crimp #32 AWG to #30 AWG Contact 30 mΩ max.
