CCM02-2763, CCM02-2758 - (CCM02-2xxx) Connector

ITT Industries

📥 Download Datasheet

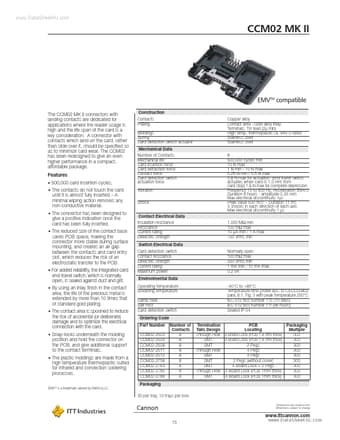

CCM02-2763 Datasheet Preview — This datasheet PDF includes multiple part numbers: CCM02-2763, CCM02-2758. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number	CCM02-2763, CCM02-2758
Manufacturer	ITT Industries
File Size	204.46 KB
Description	(CCM02-2xxx) Connector
Datasheet	CCM02-2758_ITTIndustries.pdf
Note	This datasheet PDF includes multiple part numbers: CCM02-2763, CCM02-2758. Please refer to the document for exact specifications by model.

CCM02-2763 Product details

Features

500,000 card insertion cycles.
The contacts do not touch the card until it is almost fully inserted.
A minimal wiping action removes any non-conductive material.
The connector has been designed to give a positive indication once the card has been fully inserted.
The reduced size of the contact base saves PCB space, making the connector more stable during surface mounting, and creates an air gap between the contacts and card entry slot, which reduc.
