IS67WVE2M16ALL, IS66WVE2M16ALL 1.8V Core Async/Page PSRAM

IS67WVE2M16ALL Description

IS66WVE2M16ALL IS67WVE2M16ALL 1.8V Core Async/Page PSRAM Overview The IS66WVE2M16ALL is an integrated memory device containing 32Mbit Pseudo Static Ra.
PSRAM products are high-speed, CMOS pseudo-static random access memory developed for low-power, portable applications.

IS67WVE2M16ALL Features

* Asynchronous and page mode interface
* Dual voltage rails for optional performance
* VDD 1.8V, VDDQ 1.8V
* Page mode read access
* Interpage Read access : 70ns
* Intrapage Read access : 20ns
* Low Power Consumption
* Asynchronous Operation < 30 mA
* Intrapage R

IS67WVE2M16ALL Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS67WVE2M16ALL, IS66WVE2M16ALL. Please refer to the document for exact specifications by model.

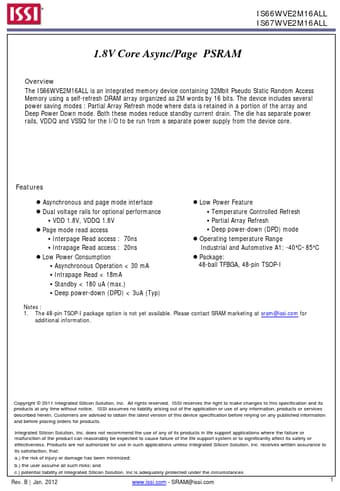

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS67WVE2M16ALL, IS66WVE2M16ALL
Manufacturer
ISSI
File Size
451.84 KB
Datasheet
IS66WVE2M16ALL-ISSI.pdf
Description
1.8V Core Async/Page PSRAM
Note
This datasheet PDF includes multiple part numbers: IS67WVE2M16ALL, IS66WVE2M16ALL.
Please refer to the document for exact specifications by model.
