IS64WV102416FBLL, IS61WV102416FALL - 1M x 16 HIGH-SPEED ASYNCHRONOUS CMOS STATIC RAM

ISSI

📥 Download Datasheet

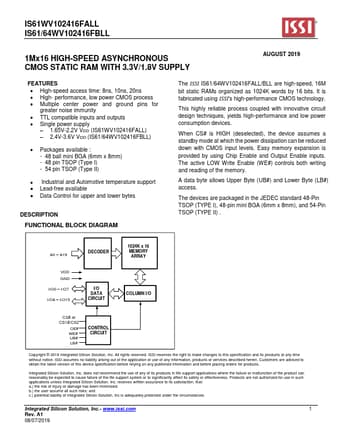

IS64WV102416FBLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS64WV102416FBLL, IS61WV102416FALL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS64WV102416FBLL, IS61WV102416FALL
Manufacturer	ISSI
File Size	711.80 KB
Description	1M x 16 HIGH-SPEED ASYNCHRONOUS CMOS STATIC RAM
Datasheet	IS61WV102416FALL-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS64WV102416FBLL, IS61WV102416FALL. Please refer to the document for exact specifications by model.

IS64WV102416FBLL Product details

Description

FUNCTIONAL BLOCK DIAGRAM The ISSI IS61/64WV102416FALL/BLL are high-speed, 16M bit static RAMs organized as 1024K words by 16 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices.When CS# is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy memory expansion is

Features

High-speed access time: 8ns, 10ns, 20ns.
High- performance, low power CMOS process.
Multiple center power and ground pins for greater noise immunity.
TTL compatible inputs and outputs.
Single power supply.
1.65V-2.2V VDD (IS61WV102416FALL).
2.4V-3.6V VDD (IS61/64WV102416FBLL).
Packages available : - 48 ball mini BGA (6mm x 8mm) - 48 pin TSOP (Type I) - 54 pin TSOP (Type II).
Industrial and Automotive temperature support.
Lead-free availa.
