IS61SPS25632D - 256Kx32 Synchronous Pipelined Static RAM

ISSI

📥 Download Datasheet

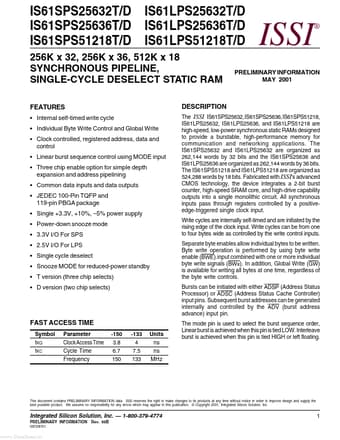

IS61SPS25632D Datasheet Preview — Preview of IS61SPS25632D PDF

Datasheet Details

Part number	IS61SPS25632D
Manufacturer	ISSI
File Size	172.78 KB
Description	256Kx32 Synchronous Pipelined Static RAM
Datasheet	IS61SPS25632D_ISSI.pdf

IS61SPS25632D Product details

Description

The ISSI IS61SPS25632, IS61SPS25636, IS61SPS51218, IS61LPS25632, IS61LPS25636, and IS61LPS51218 are high-speed, low-power synchronous static RAMs designed to provide a burstable, high-performance memory for communication and networking applications.The IS61SPS25632 and IS61LPS25632 are organized as 262,144 words by 32 bits and the IS61SPS25636 and IS61LPS25636 are organized as 262,144 words by 36 bits.The IS61SPS51218 and IS61LPS51218 are organized as 524,288 words by 18 bits.Fabricated with

Features

Internal self-timed write cycle.
Individual Byte Write Control and Global Write.
Clock controlled, registered address, data and control.
Linear burst sequence control using MODE input.
Three chip enable option for simple depth expansion and address pipelining.
Common data inputs and data outputs.
JEDEC 100-Pin TQFP and 119-pin PBGA package.
Single +3.3V, +10%,.
5% power supply.
Power-down snooze mode.
