IS61QDB24M18A - 72Mb QUAD (Burst 2) Synchronous SRAM

ISSI

The IS61QDB24M18A by ISSI is a 72Mb QUAD (Burst 2) Synchronous SRAM. Below is the official datasheet preview.

📥 Download Datasheet

IS61QDB24M18A 72Mb QUAD (Burst 2) Synchronous SRAM by ISSI - Datasheet Preview — Official preview page of the **IS61QDB24M18A** 72Mb QUAD (Burst 2) Synchronous SRAM datasheet (ISSI).

Datasheet Details

Part number	IS61QDB24M18A
Manufacturer	ISSI
File Size	592.78 KB
Description	72Mb QUAD (Burst 2) Synchronous SRAM
Datasheet	IS61QDB24M18A-ISSI.pdf

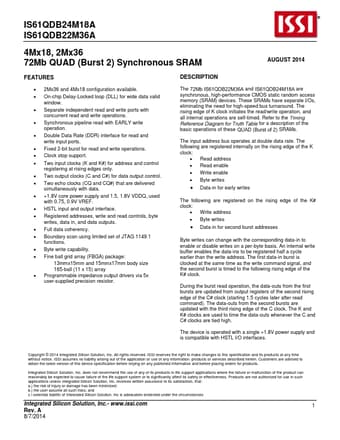

Additional preview pages of the IS61QDB24M18A datasheet.

IS61QDB24M18A Product details

Description

The and are synchronous, high-performance CMOS static random access memory (SRAM) devices.These SRAMs have separate I/Os, eliminating the need for high-speed bus turnaround.The rising edge of K clock initiates the read/write operation, and all internal operations are self-timed.Refer to the for a description of the basic operations of these SRAMs.The input address bus operates at double data rate.The following are registered internally on the rising edge of the K clock: Read

Features

2Mx36 and 4Mx18 configuration available.
On-chip Delay-Locked loop (DLL) for wide data valid window.
Separate independent read and write ports with concurrent read and write operations.
Synchronous pipeline read with EARLY write operation.
Double Data Rate (DDR) interface for read and write input ports.
Fixed 2-bit burst for read and write operations.
Clock stop support.
Two input clocks (K and K#) for address and control registering at rising edge.
