IS61LPS12832EC, IS61LPS12836EC SINGLE CYCLE DESELECT SRAM

IS61LPS12832EC Description

IS61(4)LPS12836EC/IS61(4)VPS12836EC/IS61(4)LPS12832EC IS61(4)VPS12832EC/IS61(4)LPS25618EC/IS61(4)VPS25618EC 128K x36/32 and 256K x18 4Mb, ECC, SYNCHRO.
The 4Mb product family features high-speed, low-power synchronous static RAMs designed to provide burstable, high-performance memory for communication.

IS61LPS12832EC Features

* Internal self-timed write cycle
* Individual Byte Write Control and Global Write
* Clock controlled, registered address, data and control
* Burst sequence control using MODE input
* Three chip enable option for simple depth expansion and address pipelining
* Common data inp

IS61LPS12832EC Applications

* The IS61(64)LPS/VPS12836EC are organized as 131,072 words by 36bits. The IS61(64)LPS/VPS12832EC are organized as 131,072 words by 32bits. The IS61(64)LPS/VPS25618EC are organized as 262,144 words by 18 bits. Fabricated with ISSI's advanced CMOS technology, the device integrates a 2-bit burst counte

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS61LPS12832EC, IS61LPS12836EC. Please refer to the document for exact specifications by model.

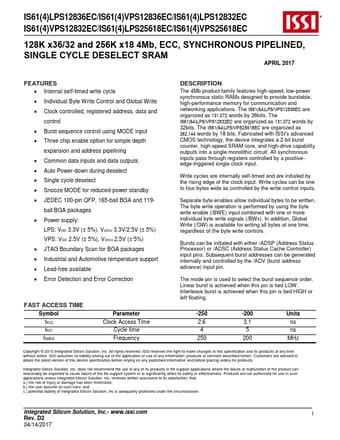

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS61LPS12832EC, IS61LPS12836EC
Manufacturer
ISSI
File Size
2.16 MB
Datasheet
IS61LPS12836EC-ISSI.pdf
Description
SINGLE CYCLE DESELECT SRAM
Note
This datasheet PDF includes multiple part numbers: IS61LPS12832EC, IS61LPS12836EC.
Please refer to the document for exact specifications by model.
