IS61LF12832A (IS6xxFxxxxxA) Synchronous Flow-through Static RAM

IS61LF12832A Description

( DataSheet : www.DataSheet4U.com ) IS61(64)LF12832A IS64VF12832A IS61(64)LF12836A IS61(64)VF12836A IS61(64)LF25618A IS61(64)VF25618A 128K x 32, 128K.
The ISSI IS61(64)LF12832A, FAST ACCESS TIME Symbol tKQ tKC Parameter Clock Access Time Cycle Time Frequency -6.

IS61LF12832A Features

* Internal self-timed write cycle
* Individual Byte Write Control and Global Write
* Clock controlled, registered address, data and control
* Burst sequence control using MODE input
* Three chip enable option for simple depth expansion and address pipelining

IS61LF12832A Applications

* The IS61(64)LF12832A is organized as 131,072 words by 32 bits. The IS61(64)LF/VF12836A is organized as 131,072 words by 36 bits. The IS61(64)LF/VF25618A is organized as 262,144 words by 18 bits. Fabricated with ISSI's advanced CMOS technology, the device integrates a 2-bit burst counter, high-speed

📥 Download Datasheet

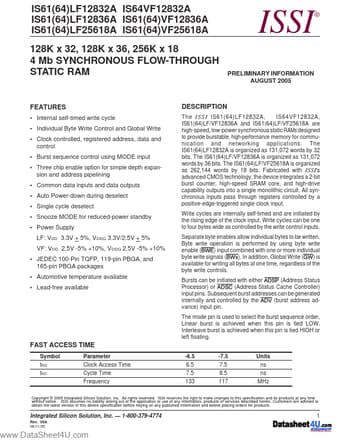

Preview of IS61LF12832A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS61LF12832A
Manufacturer
ISSI
File Size
226.05 KB
Datasheet
IS61LF12832A_ISSI.pdf
Description
(IS6xxFxxxxxA) Synchronous Flow-through Static RAM
