IS46QR16256A - 256Mbx16 4Gb DDR4 SDRAM

ISSI

📥 Download Datasheet

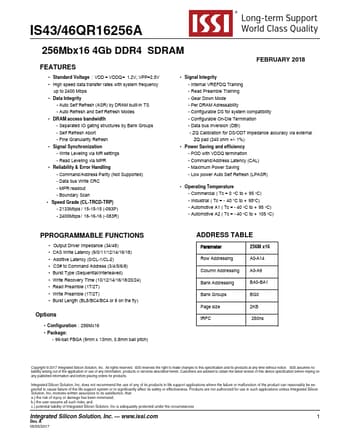

IS46QR16256A Datasheet Preview — Preview of IS46QR16256A PDF

Datasheet Details

Part number	IS46QR16256A
Manufacturer	ISSI
File Size	5.57 MB
Description	256Mbx16 4Gb DDR4 SDRAM
Datasheet	IS46QR16256A-ISSI.pdf

IS46QR16256A Product details

Description

Symbol Type CK, CK Input CKE Input CS ODT ACT RAS/A16. CAS/A15 WE/A14 Input Input Input Input LDM, UDM UDBI, LDBI Input/Output BG0 BA0 - BA1 A0 - A16 Input Input Input A10 / AP A12 / BC RESET Input Input Input Function Clock: CK and CK are differential clock inputs.All address and control input signals are sampled on the crossing of the positive edge of CK and negative edge of CK Clock Enable: CKE HIGH activates, and CKE Low deactivates, internal clock signals and device input bu
