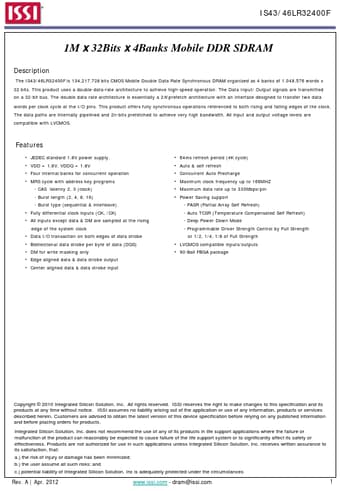

IS46LR32400F, IS43LR32400F - 1M x 32Bits x 4Banks Mobile DDR SDRAM

ISSI

Datasheet Details

Part number	IS46LR32400F, IS43LR32400F
Manufacturer	ISSI
File Size	813.33 KB
Description	1M x 32Bits x 4Banks Mobile DDR SDRAM
Datasheet	IS43LR32400F-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS46LR32400F, IS43LR32400F. Please refer to the document for exact specifications by model.

The IS43/46LR32400F is 134,217,728 bits CMOS Mobile Double Data Rate Synchronous DRAM organized as 4 banks of 1,048,576 words x 32 bits.

JEDEC standard 1.8V power supply.
VDD = 1.8V, VDDQ = 1.8V.
Four internal banks for concurrent operation.
MRS cycle with address key programs - CAS latency 2, 3 (clock) - Burst length (2, 4, 8, 16) - Burst type (sequential & interleave).
Fully differential clock inputs (CK, /CK).
All inputs except data & DM are sampled at the rising edge of the system clock.
Data I/O transaction on both edges of data strobe.
Bidirectional d.
