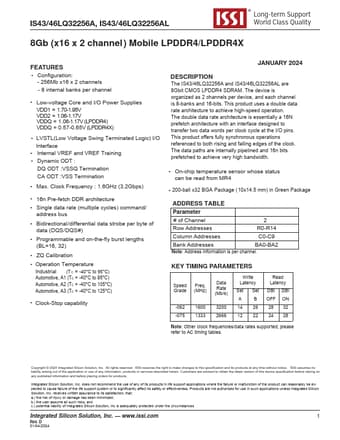

IS46LQ32256AL, IS43LQ32256A - 8Gb Mobile LPDDR4/LPDDR4X

Datasheet Details

Part number	IS46LQ32256AL, IS43LQ32256A
Manufacturer	ISSI
File Size	2.75 MB
Description	8Gb Mobile LPDDR4/LPDDR4X
Datasheet	IS43LQ32256A-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS46LQ32256AL, IS43LQ32256A. Please refer to the document for exact specifications by model.

The IS43/46LQ32256A and IS43/46LQ32256AL are 8Gbit CMOS LPDDR4 SDRAM.

Configuration: - 256Mb x16 x 2 channels - 8 internal banks per channel.
Low-voltage Core and I/O Power Supplies VDD1 = 1.70-1.95V VDD2 = 1.06-1.17V VDDQ = 1.06-1.17V (LPDDR4) VDDQ = 0.57-0.65V (LPDDR4X).
LVSTL(Low Voltage Swing Terminated Logic) I/O Interface.
Internal VREF and VREF Training.
Dynamic ODT : DQ ODT :VSSQ Termination CA ODT :VSS Termination.
Max. Clock Frequency : 1.6GHz (3.2Gbps).
16n Pre-fetch DDR architecture.
