IS46LQ16256AL - 4Gb Mobile LPDDR4/LPDDR4X

Download the IS46LQ16256AL datasheet PDF. This datasheet also covers the IS43LQ16256A variant, as both devices belong to the same 4gb mobile lpddr4/lpddr4x family and are provided as variant models within a single manufacturer datasheet.

Description

The IS43/46LQ16256A/AL and IS43/46LQ32128A/AL are 4Gbit CMOS LPDDR4 SDRAM.

The device is organized as 1/2 channels per device, and each channel is 8-banks and 16-bits.

This product uses a double data rate architecture to achieve high-speed operation.

Features

  • Configuration: - 256Mb x16 x 1 channel - 128Mb x 16 x 2 channels - 8 internal banks per channel.
  • Low-voltage Core and I/O Power Supplies VDD1 = 1.70-1.95V VDD2 = 1.06-1.17V VDDQ = 1.06-1.17V (LPDDR4) VDDQ = 0.57-0.65V (LPDDR4X).
  • LVSTL(Low Voltage Swing Terminated Logic) I/O Interface.
  • Internal VREF and VREF Training.
  • Dynamic ODT : DQ ODT :VSSQ Termination CA ODT :VSS Termination.
  • Max. Clock Frequency : 1.6GHz (3.2Gbps).
  • 16n Pre-fetc.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS43LQ16256A-ISSI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IS46R16160F 256Mb DDR SDRAM Integrated Silicon Solution
IS46R16320D 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM Integrated Silicon Solution
IS46R16320E 512Mb DDR SDRAM Integrated Silicon Solution
IS46R16800E 128Mb DDR SDRAM Integrated Silicon Solution
IS46R32160D 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM Integrated Silicon Solution

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS46LQ16256A 4Gb Mobile LPDDR4/LPDDR4X
IS46LQ16128A 2Gb Mobile LPDDR4/LPDDR4X
IS46LQ16128AL 2Gb Mobile LPDDR4/LPDDR4X
IS46LQ16512A 8Gb (x16 x 1-channel) Mobile LPDDR4/LPDDR4X
IS46LQ16512AL 8Gb (x16 x 1-channel) Mobile LPDDR4/LPDDR4X

Full PDF Text Transcription

Click to expand full text

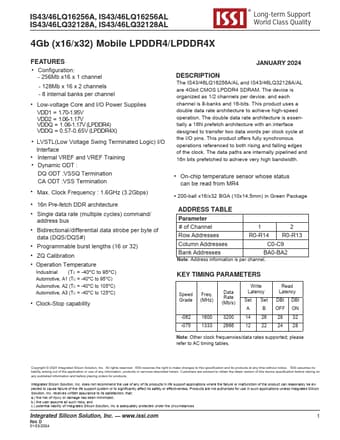

IS43/46LQ16256A, IS43/46LQ16256AL IS43/46LQ32128A, IS43/46LQ32128AL ® Long-term Support World Class Quality 4Gb (x16/x32) Mobile LPDDR4/LPDDR4X FEATURES • Configuration: - 256Mb x16 x 1 channel - 128Mb x 16 x 2 channels - 8 internal banks per channel • Low-voltage Core and I/O Power Supplies VDD1 = 1.70-1.95V VDD2 = 1.06-1.17V VDDQ = 1.06-1.17V (LPDDR4) VDDQ = 0.57-0.65V (LPDDR4X) • LVSTL(Low Voltage Swing Terminated Logic) I/O Interface • Internal VREF and VREF Training • Dynamic ODT : DQ ODT :VSSQ Termination CA ODT :VSS Termination • Max. Clock Frequency : 1.6GHz (3.
