IS46LD16128B 2Gb Mobile LPDDR2 S4 SDRAM

IS46LD16128B Description

IS43/46LD16128B IS43/46LD32640B 2Gb (x16, x32) Mobile LPDDR2 S4 SDRAM JULY 2021 .
The IS43/46LD16128B/32640B is 2Gbit CMOS LPDDR2 DRAM.

IS46LD16128B Features

* Low-voltage Core and I/O Power Supplies VDD2 = 1.14-1.30V, VDDCA/VDDQ = 1.14-1.30V, VDD1 = 1.70-1.95V
* High Speed Un-terminated Logic(HSUL_12) I/O Interface
* Clock Frequency Range : 10MHz to 533MHz (data rate range : 20Mbps to 1066Mbps per I/O)
* Four-bit Pre-fetc

IS46LD16128B Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

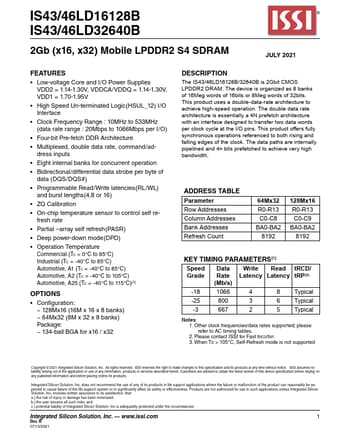

Preview of IS46LD16128B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS46LD16128B
Manufacturer
ISSI
File Size
3.53 MB
Datasheet
IS46LD16128B-ISSI.pdf
Description
2Gb Mobile LPDDR2 S4 SDRAM
