IS45RM32400H, IS42VM32400H 1M x 32Bits x 4Banks Mobile Synchronous DRAM

IS45RM32400H Description

IS42/45SM/RM/VM32400H 1M x 32Bits x 4Banks Mobile Synchronous DRAM .
These IS42/45SM/RM/VM32400H are mobile 134,217,728 bits CMOS Synchronous DRAM organized as 4 banks of 1,048,576 words x 32 bits.

IS45RM32400H Features

* JEDEC standard 3.3V, 2.5V, 1.8V power supply
* Auto refresh and self refresh
* All pins are compatible with LVCMOS interface
* 4K refresh cycle / 64ms
* Programmable Burst Length and Burst Type
* 1, 2, 4, 8 or Full Page for Sequential Burst
* 4 o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS45RM32400H, IS42VM32400H. Please refer to the document for exact specifications by model.

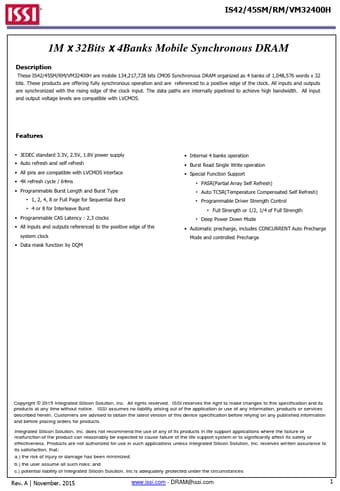

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS45RM32400H, IS42VM32400H
Manufacturer
ISSI
File Size
611.35 KB
Datasheet
IS42VM32400H-ISSI.pdf
Description
1M x 32Bits x 4Banks Mobile Synchronous DRAM
Note
This datasheet PDF includes multiple part numbers: IS45RM32400H, IS42VM32400H.
Please refer to the document for exact specifications by model.
