IS43TR16128C Datasheet (ISSI)

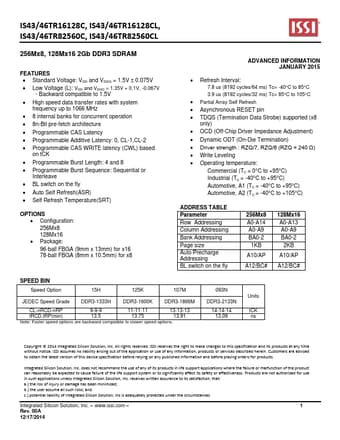

IS43TR16128C, 2Gb DDR3 SDRAM

- JEDEC Standard Symbol Type Function CK, CK# CKE CS# ODT RAS#.

CAS#.

WE# DM, (DMU), (DML) BA0 - BA2 A0 - A14 A10 / AP A12 / BC# RESET# DQ( DQL, DQU) Input Input Input Input Input Clock: CK and CK# are differential clock inputs.

All address and control input signals are sampled on the crossing

IS43TR16128C Features

* Standard Voltage: VDD and VDDQ = 1.5V ± 0.075V

* Low Voltage (L): VDD and VDDQ = 1.35V + 0.1V, -0.067V - Backward compatible to 1.5V

* High speed data transfer rates with system frequency up to 1066 MHz

* 8 internal banks for concurrent operation

* 8n-Bit pre-fetch architecture
