IS43DR82560C, IS46DR82560C DDR2 DRAM

IS43DR82560C Description

IS43/46DR82560C IS43/46DR16128C 256Mx8, 128Mx16 DDR2 DRAM .
ISSI's 2Gb DDR2 SDRAM uses a double-data-rate architecture to achieve high-speed operation.

IS43DR82560C Features

* Vdd = 1.8V ±0.1V, Vddq = 1.8V ±0.1V
* JEDEC standard 1.8V I/O (SSTL_18-compatible)
* Double data rate interface: two data transfers per clock cycle
* Differential data strobe (DQS, DQS)
* 4-bit prefetch architecture
* On chip DLL to align DQ and DQS

IS43DR82560C Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS43DR82560C, IS46DR82560C. Please refer to the document for exact specifications by model.

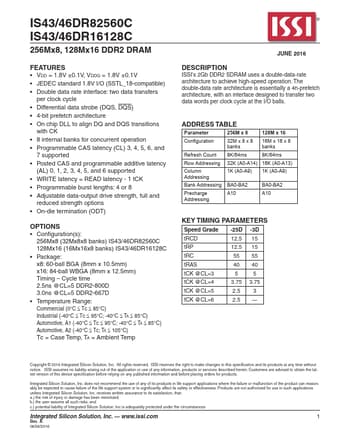

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS43DR82560C, IS46DR82560C
Manufacturer
ISSI
File Size
1.53 MB
Datasheet
IS46DR82560C-ISSI.pdf
Description
DDR2 DRAM
Note
This datasheet PDF includes multiple part numbers: IS43DR82560C, IS46DR82560C.
Please refer to the document for exact specifications by model.
