IS31AP2145B - MONO CLIP-LESS & FILTER-LESS CLASS-D

Description

The IS31AP2145B is a 2.7W@5.0V mono, clip-less, filter-less, high efficiency Class-D audio power amplifier with automatic gain control.

Features

  • 90% high efficiency, improved RF-rectification immunity, a fast start-up time and small package size make IS31AP2145B ideal choice for cellular handsets, PDAs and other portable.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by ISSI
  • IS31AP2145A - MONO CLIP-LESS & FILTER-LESS CLASS-D
  • IS31AP2110 - 20W STEREO CLASS-D AUDIO AMPLIFIER
  • IS31AP2117 - 8W/CH STEREO CLASS-D AUDIO POWER AMPLIFIER
  • IS31AP2118 - 15W STEREO CLASS-D AUDIO POWER AMPLIFIER
  • IS31AP2121 - 2×25W STEREO / 1× 50W MONO DIGITAL AUDIO AMPLIFIER
  • IS31AP2005 - 2.95W MONO FILTER-LESS CLASS-D AUDIO POWER AMPLIFIER
  • IS31AP2006 - 3W MONO FILTER-LESS CLASS-D AUDIO POWER AMPLIFIER
  • IS31AP2010B - MONO FILTER-LESS CLASS-D AUDIO POWER AMPLIFIER

Full PDF Text Transcription

Click to expand full text

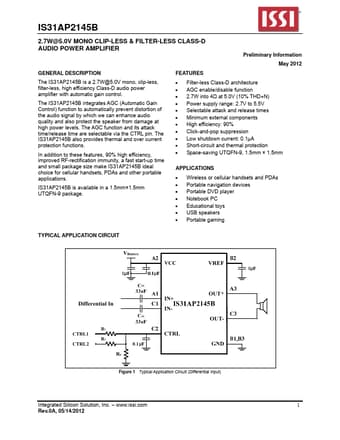

IS31AP2145B 2.7W@5.0V MONO CLIP-LESS & FILTER-LESS CLASS-D AUDIO POWER AMPLIFIER Preliminary Information May 2012 GENERAL DESCRIPTION The IS31AP2145B is a 2.7W@5.0V mono, clip-less, filter-less, high efficiency Class-D audio power amplifier with automatic gain control. The IS31AP2145B integrates AGC (Automatic Gain Control) function to automatically prevent distortion of the audio signal by which we can enhance audio quality and also protect the speaker from damage at high power levels. The AGC function and its attack time/release time are selectable via the CTRL pin. The IS31AP2145B also provides thermal and over current protection functions.
