IS25WP02GG - 2Gb SERIAL FLASH MEMORY

Download the IS25WP02GG datasheet PDF. This datasheet also covers the IS25LP02GG variant, as both devices belong to the same 2gb serial flash memory family and are provided as variant models within a single manufacturer datasheet.

Description

The IS25LP02GG and IS25WP02GG Serial Flash memory offers a versatile storage solution with high flexibility and performance in a simplified pin count package.

ISSI’s “Industry Standard Serial Interface” Flash is for systems that require limited space, a low pin count, and low power consumption.

Features

  • Industry Standard Serial Interface - IS25LP02GG: 2Gbit/256Mbyte - IS25WP02GG: 2Gbit/256Mbyte - 3 or 4 Byte Addressing Mode - Supports Standard SPI, Fast, Dual, Dual I/O, Quad, Quad I/O, SPI DTR, Dual I/O DTR, Quad I/O DTR, and QPI - Software & Hardware Reset - Supports Serial Flash Discoverable Parameters (SFDP) - Dedicated WP# as an option(3).
  • High Performance Serial Flash (SPI) - 50MHz Normal Read - Up to133Mhz Fast Read - Up to 66MHz DTR (Dual Transfer Rate) - Equivalent T.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS25LP02GG-ISSI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IS2008 Bluetooth 4.1 Mono Audio SOC ISSC
IS201 (IS201 - IS204) HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ISOCOM COMPONENTS
IS201-63 OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT ISOCOM COMPONENTS
IS2010 Bluetooth 4.1 Mono Audio SOC ISSC
IS2013 Bluetooth 4.1 Mono Audio SOC ISSC

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS25WP020 1.8V SERIAL FLASH MEMORY
IS25WP020D 2Mb SERIAL FLASH MEMORY
IS25WP020E 2M SERIAL FLASH MEMORY
IS25WP025E 526K SERIAL FLASH MEMORY
IS25WP010E 1M SERIAL FLASH MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

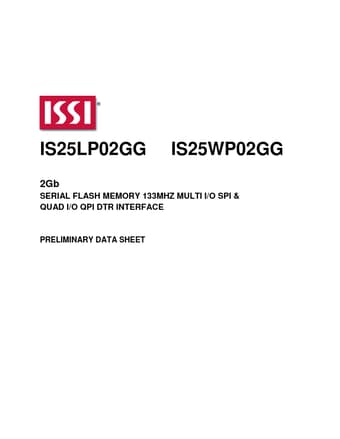

IS25LP02GG IS25WP02GG 2Gb SERIAL FLASH MEMORY 133MHZ MULTI I/O SPI & QUAD I/O QPI DTR INTERFACE PRELIMINARY DATA SHEET IS25LP02GG IS25WP02GG 2Gb SERIAL FLASH MEMORY 133MHZ MULTI I/O SPI & QUAD I/O QPI DTR INTERFACE PRELIMINARY INFORMATION FEATURES • Industry Standard Serial Interface - IS25LP02GG: 2Gbit/256Mbyte - IS25WP02GG: 2Gbit/256Mbyte - 3 or 4 Byte Addressing Mode - Supports Standard SPI, Fast, Dual, Dual I/O, Quad, Quad I/O, SPI DTR, Dual I/O DTR, Quad I/O DTR, and QPI - Software & Hardware Reset - Supports Serial Flash Discoverable Parameters (SFDP) - Dedicated WP# as an option(3) • High Performance Serial Flash (SPI) - 50MHz Normal Read - Up to133Mhz Fast Read - Up to 66MHz DTR (Dual Transfer Rate) - Equivalent Throughput of 664 Mb/s - Selectable Dummy Cycles - Configurable D
