IS25WP020D - 2Mb SERIAL FLASH MEMORY

Download the IS25WP020D datasheet PDF. This datasheet also covers the IS25LP080D variant, as both devices belong to the same 2mb serial flash memory family and are provided as variant models within a single manufacturer datasheet.

Description

The IS25LP080D and IS25WP080D/040D/020D Serial Flash memory offers a versatile storage solution with high flexibility and performance in a simplified pin count package.

Features

  • Industry Standard Serial Interface - IS25LP080D: 8Mbit/1Mbyte - IS25WP080D: 8Mbit/1Mbyte - IS25WP040D: 4Mbit/512Kbyte - IS25WP020D: 2Mbit/256Kbyte - 256 bytes per Programmable Page - Supports standard SPI, Fast, Dual, Dual I/O, Quad, Quad I/O, SPI DTR, Dual I/O DTR, Quad I/O DTR, and QPI - Supports Serial Flash Discoverable Parameters (SFDP).
  • High Performance Serial Flash (SPI) - 50MHz Normal and 133Mhz Fast Read - 532 MHz equivalent QPI - DTR (Dual Transfer Rate) up to 66MHz.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS25LP080D-ISSI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IS2008 Bluetooth 4.1 Mono Audio SOC ISSC
IS201 (IS201 - IS204) HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ISOCOM COMPONENTS
IS201-63 OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT ISOCOM COMPONENTS
IS2010 Bluetooth 4.1 Mono Audio SOC ISSC
IS2013 Bluetooth 4.1 Mono Audio SOC ISSC

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS25WP020 1.8V SERIAL FLASH MEMORY
IS25WP020E 2M SERIAL FLASH MEMORY
IS25WP025E 526K SERIAL FLASH MEMORY
IS25WP02GG 2Gb SERIAL FLASH MEMORY
IS25WP010E 1M SERIAL FLASH MEMORY

Full PDF Text Transcription

Click to expand full text

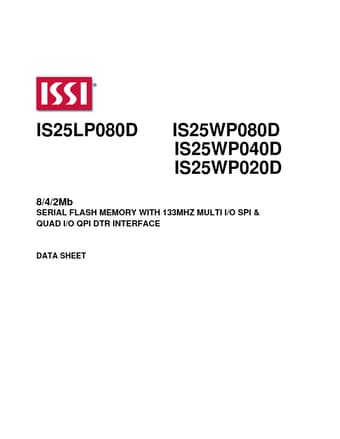

IS25LP080D IS25WP080D IS25WP040D IS25WP020D 8/4/2Mb SERIAL FLASH MEMORY WITH 133MHZ MULTI I/O SPI & QUAD I/O QPI DTR INTERFACE DATA SHEET 8/4/2Mb SERIAL FLASH MEMORY WITH 133MHZ MULTI I/O SPI & QUAD I/O QPI DTR INTERFACE IS25LP080D IS25WP080D/040D/020D FEATURES • Industry Standard Serial Interface - IS25LP080D: 8Mbit/1Mbyte - IS25WP080D: 8Mbit/1Mbyte - IS25WP040D: 4Mbit/512Kbyte - IS25WP020D: 2Mbit/256Kbyte - 256 bytes per Programmable Page - Supports standard SPI, Fast, Dual, Dual I/O, Quad, Quad I/O, SPI DTR, Dual I/O DTR, Quad I/O DTR, and QPI - Supports Serial Flash Discoverable Parameters (SFDP) • High Performance Serial Flash (SPI) - 50MHz Normal and 133Mhz Fast Read - 532 MHz equivalent QPI - DTR (Dual Transfer Rate) up to 66MHz - Selectable Dummy Cycles - Configurable Drive S
