IS25LP256D - 256Mb SERIAL FLASH MEMORY

IS25LP256D Description

IS25LP256D IS25WP256D 256Mb SERIAL FLASH MEMORY WITH 166/133MHZ MULTI I/O SPI & QUAD I/O QPI DTR INTERFACE DATA SHEET 256Mb SERIAL FLASH MEMORY WITH .
The IS25LP256D and IS25WP256D Serial Flash memory offers a versatile storage solution with high flexibility and performance in a simplified pin count.

IS25LP256D Features

* Industry Standard Serial Interface - IS25LP256D: 256Mbit/32Mbyte - IS25WP256D: 256Mbit/32Mbyte - 3 or 4 Byte Addressing Mode - Supports Standard SPI, Fast, Dual, Dual I/O, Quad, Quad I/O, SPI DTR, Dual I/O DTR, Quad I/O DTR, and QPI - Software & Hardware Reset - Supports Serial Flash Disco

IS25LP256D Applications

* requiring solid data retention. GLOSSARY Standard SPI In this operation, a 4-wire SPI Interface is utilized, consisting of Serial Data Input (SI), Serial Data Output (SO), Serial Clock (SCK), and Chip Enable (CE#) pins. Instructions are sent via the SI pin to encode instructions, addresses, or input

📥 Download Datasheet

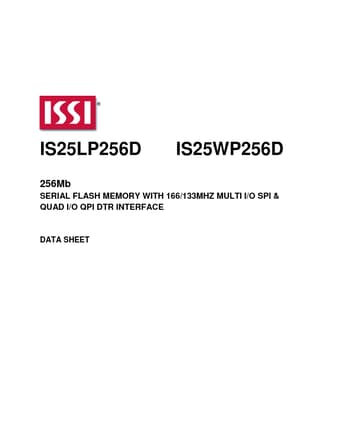

Preview of IS25LP256D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS25LP256D
Manufacturer
ISSI
File Size
2.31 MB
Datasheet
IS25LP256D-ISSI.pdf
Description
256Mb SERIAL FLASH MEMORY
