IS2025, IS2020 Bluetooth 4.1 Stereo Audio SOC

IS2025 Description

IS2020/21/23/25 SoC Bluetooth® 4.1 Stereo Audio SOC .
Stereo Audio Chip is a compact, highly integrated, CMOS single-chip RF and baseband IC for Bluetooth v4.

IS2025 Features

* System Specification
* Compliant with Bluetooth Specification v.4.1 (EDR) in 2.4 GHz ISM band
* It supports following profiles : - HFP 1.6 - HSP 1.1 - A2DP 1.2 - AVRCP 1.5 - SPP 1.0 - PBAP 1.0 Baseband Hardware
* 16MHz main clock input
* Built-in internal ROM for program memory

IS2025 Applications

* This chip is fully compliant with Bluetooth specification and completely backward-compatible with Bluetooth 3.0, 2.0 or 1.2 systems. It incorporates Bluetooth 1M/2M/3Mbps RF, single-cycle 8bit MCU, TX/RX modem, 5-port memory controller, task/hopping controller, Page 1 UART interface, and MICROCHI

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS2025, IS2020. Please refer to the document for exact specifications by model.

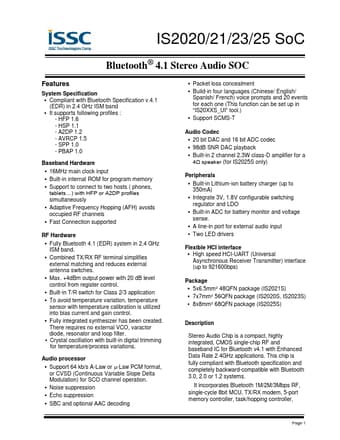

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS2025, IS2020
Manufacturer
ISSC
File Size
2.44 MB
Datasheet
IS2020-ISSC.pdf
Description
Bluetooth 4.1 Stereo Audio SOC
Note
This datasheet PDF includes multiple part numbers: IS2025, IS2020.
Please refer to the document for exact specifications by model.
