IS1690S - Bluetooth 3.0 Multi-Speaker Stereo Audio SOC

IS1690S Description

IS1690S SoC Bluetooth® 3.0 Multi-Speaker Stereo Audio SOC .
IS1690S multi-speaker stereo audio chip is a compact, highly integrated, CMOS single-chip RF and baseband IC for Bluetooth v3.

IS1690S Features

* System Specification
* Compliant with Bluetooth Specification v.3.0 + EDR in 2.4 GHz ISM band
* It supports following profiles : - Hands Free 1.5 - Headset 1.0 - A2DP 1.0 - AVRCP 1.0 Baseband Hardware
* 16MHz main clock input
* Built-in internal ROM for program memory
* Support t

IS1690S Applications

* This chip is fully compliant with Bluetooth specification and completely backwardcompatible with Bluetooth 2.0 or 1.2 systems. It incorporates Bluetooth 1M/2M/3Mbps RF, singlecycle 8bit MCU, TX/RX modem, 5-port memory controller, task/hopping controller, UART interface, and ISSC’s own Bluetooth sof

📥 Download Datasheet

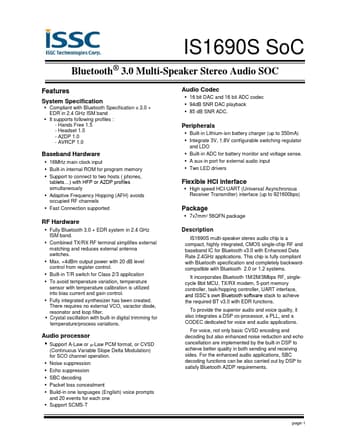

Preview of IS1690S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS1690S
Manufacturer
ISSC
File Size
1.41 MB
Datasheet
IS1690S-ISSC.pdf
Description
Bluetooth 3.0 Multi-Speaker Stereo Audio SOC
