BM20 - Bluetooth 4.1 Stereo Audio-Module

ISSC

📥 Download Datasheet

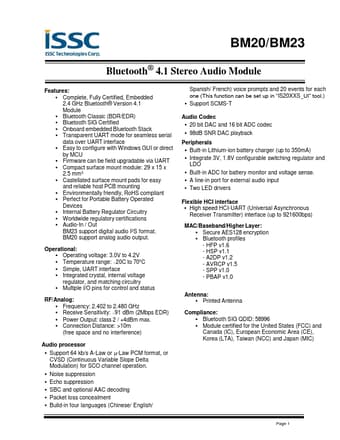

BM20 Datasheet Preview — Preview of BM20 PDF

Datasheet Details

Part number	BM20
Manufacturer	ISSC
File Size	2.37 MB
Description	Bluetooth 4.1 Stereo Audio-Module
Datasheet	BM20-ISSC.pdf

BM20 Product details

Description

Stereo module is a fully-certified Bluetooth® Version 4.1 (BDR/EDR) module for designers who want to add Bluetooth® wireless audio and voice applications to their products.This Bluetooth SIG certified module provides a complete wireless solution with Bluetooth stack, integrated antenna, and worldwide radio certifications in a compact surface mount package, 29x15x2.5 mm3. This stereo module built-in Li-Ion charger and BM23 contain a digital audio interface.It supports HSP, HFP, SPP, A2DP, and

Features

Complete, Fully Certified, Embedded 2.4 GHz Bluetooth® Version 4.1 Module.
Bluetooth Classic (BDR/EDR).
Bluetooth SIG Certified.
Onboard embedded Bluetooth Stack.
Transparent UART mode for seamless serial data over UART interface.
Easy to configure with Windows GUI or direct by MCU.
Firmware can be field upgradable via UART.
Compact surface mount module: 29 x 15 x 2.5 mm3.
Castellated surface mount pads for easy and reliable host PCB mounting.
