ISP817 - Optocoupler / Phototransistor

Name: ISP817
SKU: ISP817-1357437

ISOCOM

📥 Download Datasheet

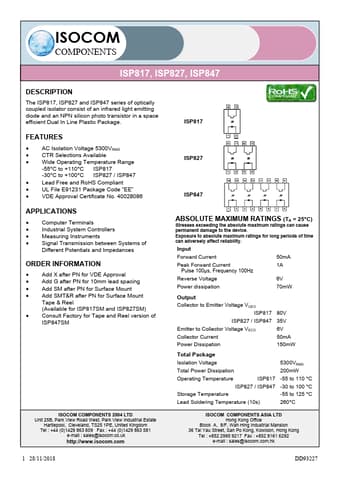

ISP817 Datasheet Preview — Preview of ISP817 PDF

Datasheet Details

Part number	ISP817
Manufacturer	ISOCOM
File Size	6.70 MB
Description	Optocoupler / Phototransistor
Datasheet	ISP817-ISOCOM.pdf

ISP817 Product details

Description

The ISP817, ISP827 and ISP847 series of optically coupled isolator consist of an infrared light emitting diode and an NPN silicon photo transistor in a space efficient Dual In Line Plastic Package.

Features

AC Isolation Voltage 5300VRMS.
CTR Selections Available.
Wide Operating Temperature Range -55°C to +110°C ISP817 -30°C to +100°C ISP827 / ISP847.
Lead Free and RoHS Compliant.
UL File E91231 Package Code “EE”.
VDE Approval Certificate No. 40028086.
