ICPL2611, ICPL2601 - Optocoupler

Name: ICPL2611
SKU: ICPL2611-1357387

ISOCOM

📥 Download Datasheet

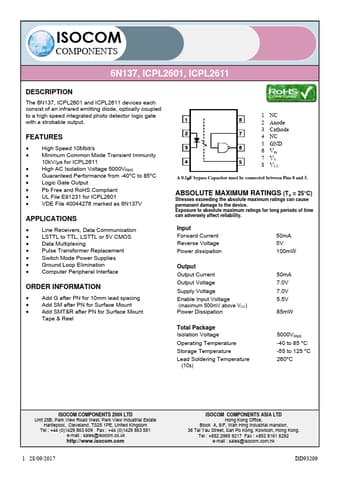

ICPL2611 Datasheet Preview — This datasheet PDF includes multiple part numbers: ICPL2611, ICPL2601. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ICPL2611, ICPL2601
Manufacturer	ISOCOM
File Size	921.43 KB
Description	Optocoupler
Datasheet	ICPL2601-ISOCOM.pdf
Note	This datasheet PDF includes multiple part numbers: ICPL2611, ICPL2601. Please refer to the document for exact specifications by model.

ICPL2611 Product details

Description

The 6N137, ICPL2601 and ICPL2611 devices each consist of an infrared emitting diode, optically coupled to a high speed integrated photo detector logic gate with a strobable output.

Features

High Speed 10Mbit/s.
Minimum Common Mode Transient Immunity 10kV/μs for ICPL2611.
High AC Isolation Voltage 5000VRMS.
Guaranteed Performance from -40°C to 85°C.
Logic Gate Output.
Pb Free and RoHS Compliant.
UL File E91231 for ICPL2601.
VDE File 40044276 marked as 6N137V.
