4N32-2, 4N32-x - LOW INPUT CURRENT PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS

Name: 4N32-2
SKU: 4N32-2-1340317

ISOCOM

📥 Download Datasheet

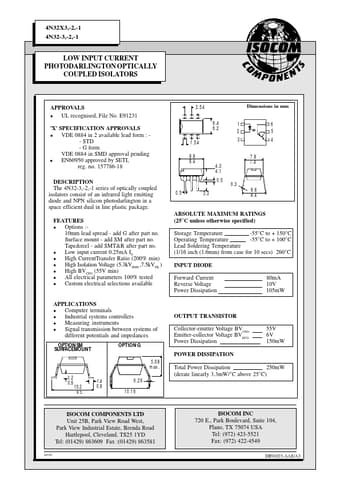

4N32-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: 4N32-2, 4N32-x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	4N32-2, 4N32-x
Manufacturer	ISOCOM
File Size	66.38 KB
Description	LOW INPUT CURRENT PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS
Datasheet	4N32-x_ISOCOM.pdf
Note	This datasheet PDF includes multiple part numbers: 4N32-2, 4N32-x. Please refer to the document for exact specifications by model.

4N32-2 Product details

Description

The 4N32-3,-2,-1 series of optically coupled isolators consist of an infrared light emitting diode and NPN silicon photodarlington in a space efficient dual in line plastic package.

Features

l Options :- 10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l Low input current 0.25mA I F l High CurrentTransfer Ratio (200% min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO (55V min) l All electrical parameters 100% tested l Custom electrical selections available.
