ISQ204X1, ISQ204X3 - LOW INPUT CURRENT PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

ISOCOM COMPONENTS

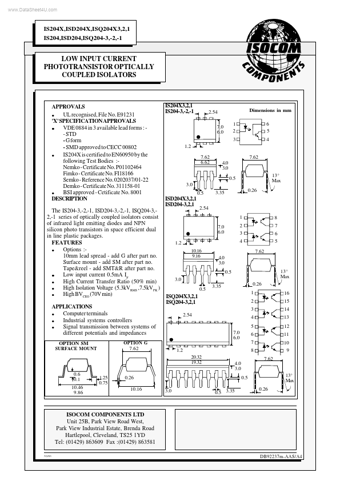

ISQ204X1 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISQ204X1, ISQ204X3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ISQ204X1, ISQ204X3
Manufacturer	ISOCOM COMPONENTS
File Size	103.70 KB
Description	LOW INPUT CURRENT PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
Datasheet	ISQ204X3_ISOCOMCOMPONENTS.pdf
Note	This datasheet PDF includes multiple part numbers: ISQ204X1, ISQ204X3. Please refer to the document for exact specifications by model.

ISQ204X1 Product details

Description

The IS204-3,-2,-1, ISD204-3,-2,-1, ISQ204-3,2,-1 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo transistors in space efficient dual in line plastic packages.

Features

l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l Low input current 0.5mA IF l High Current Transfer Ratio (50% min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO (70V min).
